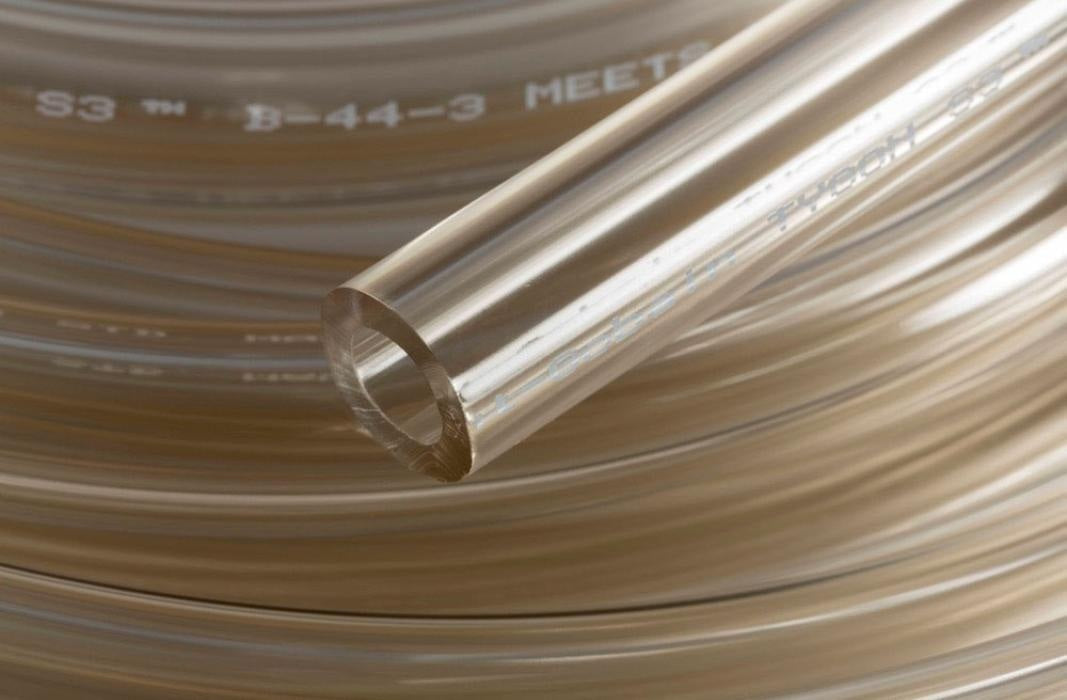

AAB00012 Tygon® by Saint Gobain | B-44-3 | Flexible Tubing for Beverage Transfer | 3/16" ID x 5/16" OD x 1/16" Wall | 50' Package Length
Saint Gobain
Tygon® B-44-3 | Flexible Tubing for Beverage Transfer
Tygon® B-44-3 tubing is specially formulated for transferring a wide variety of beverages including soft drinks, fruit juices, flavored teas and bottled water.
Will not affect the taste or odor of products transferred through it; the transferred product will also not affect the mechanical properties of the tubing (color, transparency, cracking, hardness, tackiness, weight change, and flexibility).
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $73.50 |
| 20–59 | $66.46 |
| 60+ | $62.55 |
Tygon® B-44-3 Tubing
Tygon® B-44-3 tubing for beverage transfer from Saint-Gobain is phthalate-free and specifically formulated to ensure it does not affect the taste nor odor of liquids moving through it, including soft drinks and juices. It is non-wetting, which allows it to completely drain and flush clean with ease, and its glass-like clarity makes it easy to monitor and adjust the beverage flow during processing.
1
What is this product used for?
- Food and beverage transfer.
- Food and beverage dispensing.
2
What are the key specifications?
N/A
N/A
None
Clear
165°C (74°F)
-67°F (-55°C)
- Complies with applicable FDA Food Additive Regulations
- NSF®-51, NSF®-61, 3-A
- Japan Food Sanitation Law # 370/1959
- REACH, and 1935/2004/EC for many foods and beverages
- Does not contain chemicals listed in California’s Proposition 65
- EU 10/2011
Not intended as an implant material!
3
What are the main product features?
- Tubing will not affect the taste or odor of transferred products.
- Transferred product will not affect the tubing’s mechanical properties (color, transparency, cracking, hardness, tackiness, weight change, and flexibility).
- Clear as glass for easy visual monitoring of flow.
- Lightweight and flexible for easy, quick installation.
- Broad chemical resistance.
- Non-wetting properties allow easy cleaning and complete drainage.
- Contains no BPA or phthalates.
4
Which sizes or configurations are available?
| Part Number |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Vacuum Rating (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| AAB00002 | 1/16" | 1/8" | 1/32" | 1/4" | 60 PSI | 29.9 in. Hg | 50ft |
| AAB00003 | 1/16" | 3/16" | 1/16" | 1/8" | 10 PSI | 29.9 in. Hg | 50ft |
| AAB00004 | 3/32" | 5/32" | 1/32" | 3/8" | 43 PSI | 29.9 in. Hg | 50ft |
| AAB00005 | 3/32" | 7/32" | 1/16" | 1/4" | 74 PSI | 29.9 in. Hg | 50ft |
| AAB00006 | 1/8" | 3/16" | 1/32" | 1/2" | 34 PSI | 25.0 in. Hg | 50ft |
| AAB00007 | 1/8" | 1/4" | 1/16" | 3/8" | 60 PSI | 29.9 in. Hg | 50ft |
| AAB00009 | 5/32" | 7/32" | 1/32" | 3/4" | 28 PSI | 16.0 in. Hg | 50ft |
| AAB00010 | 5/32" | 9/32" | 1/16" | 1/2" | 50 PSI | 29.9 in. Hg | 50ft |
| AAB00011 | 3/16" | 1/4" | 1/32" | 1" | 25 PSI | 11.0 in. Hg | 50ft |
| AAB00012 | 3/16" | 5/16" | 1/16" | 5/8" | 43 PSI | 29.9 in. Hg | 50ft |
| AAB00013 | 3/16" | 3/8" | 3/32" | 1/2" | 60 PSI | 29.9 in. Hg | 50ft |
| AAB00014 | 3/16" | 7/16" | 1/8" | 3/8" | 74 PSI | 29.9 in. Hg | 50ft |
| AAB00016 | 1/4" | 5/16" | 1/32" | 1-5/8" | 19 PSI | 6.0 in. Hg | 50ft |
| AAB00017 | 1/4" | 3/8" | 1/16" | 1" | 34 PSI | 25.0 in. Hg | 50ft |
| AAB00018 | 1/4" | 7/16" | 3/32" | 3/4" | 47 PSI | 29.9 in. Hg | 50ft |
| AAB00019 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 50ft |
| AAB00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 28 PSI | 16.0 in. Hg | 50ft |
| AAB00023 | 5/16" | 1/2" | 3/32" | 1" | 40 PSI | 29.9 in. Hg | 50ft |
| AAB00024 | 5/16" | 9/16" | 1/8" | 7/8" | 50 PSI | 29.9 in. Hg | 50ft |
| AAB00027 | 3/8" | 1/2" | 1/16" | 1-3/4" | 25 PSI | 11.0 in. Hg | 50ft |
| AAB00028 | 3/8" | 9/16" | 3/32" | 1-3/8" | 34 PSI | 25.0 in. Hg | 50ft |
| AAB00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 44 PSI | 29.9 in. Hg | 50ft |
| AAB00034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 36 PSI | 29.9 in. Hg | 50ft |
| AAB00036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 19 PSI | 6.0 in. Hg | 50ft |
| AAB00037 | 1/2" | 11/16" | 3/32" | 2-1/8" | 27 PSI | 14.0 in. Hg | 50ft |
| AAB00038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 34 PSI | 25.0 in. Hg | 50ft |
| AAB00046 | 5/8" | 7/8" | 1/8" | 2-3/8" | 29 PSI | 16.0 in. Hg | 50ft |
| AAB00051 | 11/16" | 15/16" | 1/8" | 2-7/8" | 27 PSI | 13.0 in. Hg | 50ft |
| AAB00053 | 3/4" | 1" | 1/8" | 3-1/4" | 25 PSI | 11.0 in. Hg | 50ft |
| AAB00059 | 7/8" | 1-1/8" | 1/8" | 4-1/8" | 22 PSI | 8.0 in. Hg | 50ft |
| AAB00062 | 1" | 1-1/4" | 1/8" | 5-1/8" | 20 PSI | 6.0 in. Hg | 50ft |
| AAB00064 | 1" | 1-3/8" | 3/16" | 3-3/4" | 27 PSI | 14.0 in. Hg | 50ft |
| AAB00065 | 1" | 1-1/2" | 1/4" | 3" | 34 PSI | 25.0 in. Hg | 50ft |
| AAB00069 | 1-1/4" | 1-1/2" | 1/8" | 7-3/8" | 16 PSI | 4.0 in. Hg | 50ft |
| AAB00070 | 1-1/4" | 1-5/8" | 3/16" | 5-1/2" | 23 PSI | 9.0 in. Hg | 50ft |
| AAB00071 | 1-1/4" | 1-3/4" | 1/4" | 4-3/8" | 28 PSI | 16.0 in. Hg | 50ft |
| AAB00073 | 1-1/2" | 1-7/8" | 3/16" | 7-1/4" | 19 PSI | 6.0 in. Hg | 50ft |
| AAB00074 | 1-1/2" | 2" | 1/4" | 5-7/8" | 25 PSI | 11.0 in. Hg | 50ft |
| AAB00076 | 1-3/4" | 2-1/4" | 1/4" | 7-1/2" | 22 PSI | 8.0 in. Hg | 50ft |
| AAB00078 | 2" | 2-1/2" | 1/4" | 9-3/8" | 19 PSI | 6.0 in. Hg | 50ft |
| AAB02007 | 1/8" | 1/4" | 1/16" | N/A | N/A | N/A | 100ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® B-44-3 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
