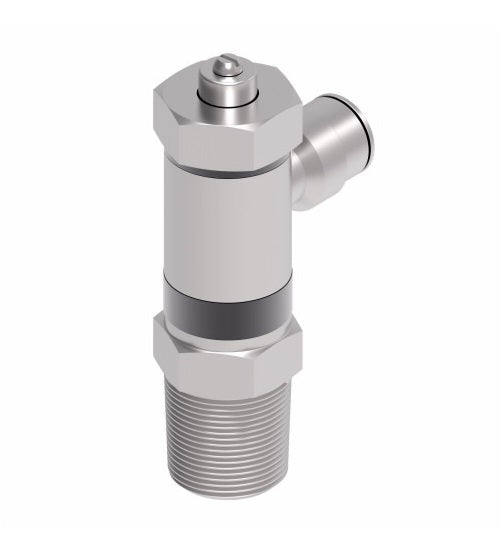

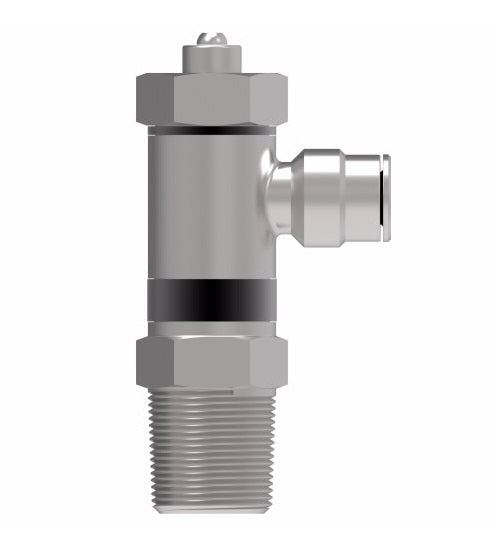

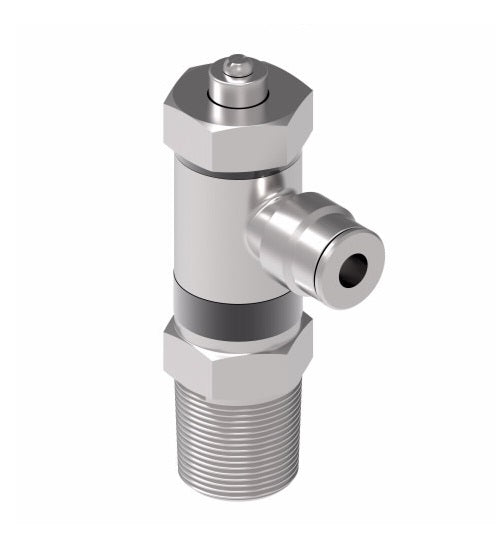

A55SCUX6X6 by Danfoss | Push to Connect Flow Control | Screwdriver Adjust | Right Angle | 3/8" Tube OD x 3/8" Male NPTF | Nickel Plated Brass
Aeroquip® by Danfoss
Push to Connect Flow Control
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $59.01 |
| 40–79 | $53.36 |
| 80+ | $47.09 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Material: | |||
|
|||
| Operating Pressure: | |||
|
 |
Nickel Plated Brass Part Number |
Tube O.D. | Male NPTF B |
S | H | L | SW (mm) |
Adjustment | Assembly | Functions |
|---|---|---|---|---|---|---|---|---|---|
| A55SCUX2.5X2 | 5/32" | 1/8" | 0.51" | 0.37" | 2.000" | 14 | Screwdriver | On Cylinders | Unidirectional |
| A55SCUX4X2 | 1/4" | 1/8" | 0.51" | 0.37" | 2.000" | 14 | Screwdriver | On Cylinders | Unidirectional |
| A55SCUX4X4 | 1/4" | 1/4" | 0.45" | 0.51" | 2.250" | 17 | Screwdriver | On Cylinders | Unidirectional |
| A55SCUX6X4 | 3/8" | 1/4" | 0.45" | 0.51" | 2.250" | 17 | Screwdriver | On Cylinders | Unidirectional |
| A55SCUX6X6 | 3/8" | 3/8" | 0.48" | 0.51" | 2.440" | 19 | Screwdriver | On Cylinders | Unidirectional |
