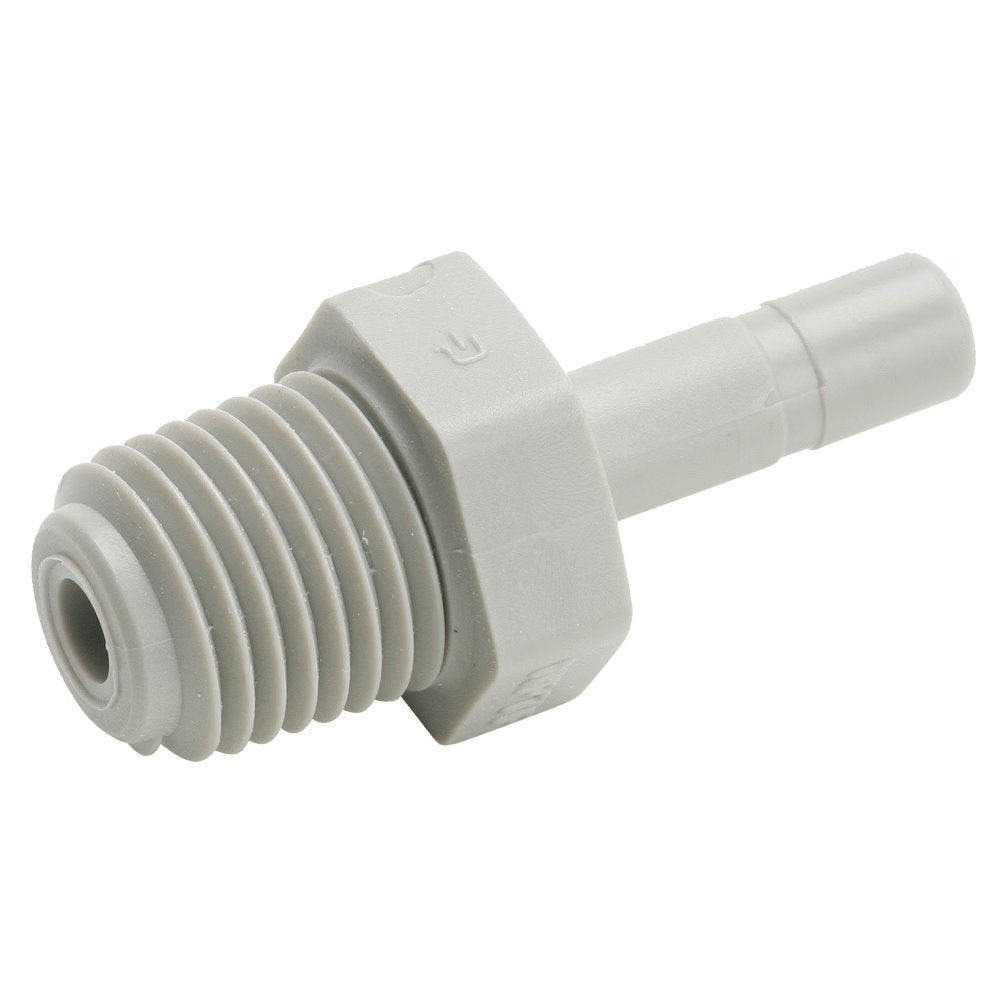

A4TMC2 by Parker | TrueSeal™ Threaded Fittings | 1/4" Tube Stem Adapter x 1/8" Male NPTF Thread | 1.44" Length | Straight | Gray | Acetal

A4TMC2 by Parker | TrueSeal™ Threaded Fittings | 1/4" Tube Stem Adapter x 1/8" Male NPTF Thread | 1.44" Length | Straight | Gray | Acetal

Sale price$0.68

by Parker Hannifin
TrueSeal™ Fittings:TMC - Tube Stem Adapter
Buy More, Save More!
Quantity Price Each
20–39 $0.64
40–79 $0.58
80+ $0.51
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • TMC Series
Shape:

Straight
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet standard
  • White Polypropylene with EPDM seals and plastic gripping collet standard
  • Black Kynar with Fluorocarbon (FKM) seals and black Kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray Acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets & Applications
  • Food
  • Potable Water
  • Chemical
  • Filtration
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range
  • Acetal and Kynar: 1/4", 5/16", 3/8" vacuum to 300 PSI (20.7 bar); 1/2" vacuum to 250 PSI (17.2 bar)
  • Polypropylene: 1/4", 3/8", 1/2" vacuum to 150 PSI (10.3 bar)
Temperature Range
  • Acetal: -20° to +180° F (-28.9° to +82.2° C)
  • Polypropylene: 0° to +225° F (-17.8° to +107.2° C)
  • Kynar: 0° to +275° F (-17.8° to +135° C)
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®
Notes

* Registered trademark of The Arkema Group.
** Metal gripper required (-MG & -HBLK suffix).
+ Tube Support required.

Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. NPTF Thread Size Hex (C) Overall Length (L) Flow Diameter (D)
A4TMC2 PPB4TMC2 PP4TMC2 FB4TMC2 1/4" 1/8" 9/16" 1.44" .175"
A4TMC4 PPB4TMC4 PP4TMC4 FB4TMC4 1/4" 1/4" 11/16" 1.56" .175"
A5TMC2 - - - 5/16" 1/8" 9/16" 1.50" .188"
A5TMC4 - - FB5TMC4 5/16" 1/4" 11/16" 1.67" .188"
A5TMC6 - - - 5/16" 3/8" 13/16" 1.67" .188"
A6TMC4 PPB6TMC4 PP6TMC4 FB6TMC4 3/8" 1/4" 13/16" 1.70" .250"
A6TMC6 PPB6TMC6 PP6TMC6 FB6TMC6 3/8" 3/8" 13/16" 1.70" .250"
A6TMC8 - - - 3/8" 1/2" 15/16" 1.90" .250"
A8TMC4 - - - 1/2" 1/4" 13/16" 1.82" .240"
A8TMC6 - PP8TMC6 FB8TMC6 1/2" 3/8" 13/16" 1.82" .375"
A8TMC8 - PP8TMC8 FB8TMC8 1/2" 1/2" 1" 2.04" .375"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
