A43-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x G-1/4-19 Thread 60° Cone Female Swivel | 1/4" BSPP | 45° Elbow

A43-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x G-1/4-19 Thread 60° Cone Female Swivel | 1/4" BSPP | 45° Elbow

Sale price$23.69

Couplamatic Systems Inc.
A Series - BSPP - British Standard Parallel 60° Cone - 45° Bend Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $22.27
40–79 $20.14
80+ $17.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

45 Degree

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.

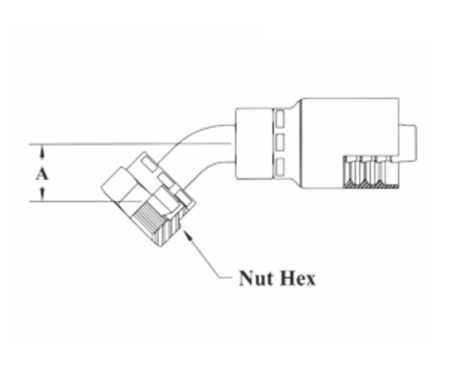

Part Number Hose ID BSPP Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead Z
A43-4x4 1/4" 1/4" G-1/4-19 0.91" 3/4" 04Z-44P
A43-6x6 3/8" 3/8" G-3/8-19 0.90" 7/8" 06Z-46P
A43-8x8 1/2" 1/2" G-1/2-14 0.87" 1" 08Z-48P

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
