A38-4x10 by Couplamatic | A Series Coupling | 1/4" Hose ID x M18x1.5 Thread DIN Heavy 24° Seat Female Swivel | Straight

A38-4x10 by Couplamatic | A Series Coupling | 1/4" Hose ID x M18x1.5 Thread DIN Heavy 24° Seat Female Swivel | Straight

Sale price$18.94

Couplamatic Systems Inc.
A Series - DIN Heavy 24° Seat - Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $17.80
40–79 $16.10
80+ $14.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

Straight

Ends Configuration:
  • S10 Female DIN
  • 1/4in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • O-Ring Included.

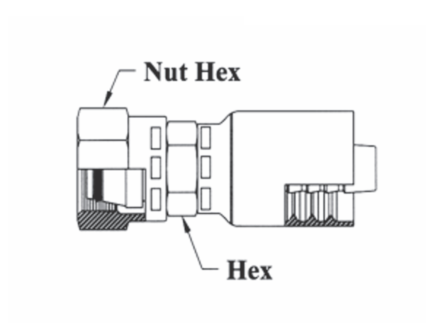

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A38-4x8 1/4" 8mm M16x1.5 5/8" 3/4" 1A5DS4 04Z-58C
A38-4x10 1/4" 10mm M18x1.5 5/8" 7/8" 1A6DS6 04Z-60C
A38-6x12 3/8" 12mm M20x1.5 3/4" 1" 1A8DS6 06Z-62C
A38-8x16 1/2" 16mm M24x1.5 7/8" 1-1/8" 1A12DS8 08Z-66C

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
