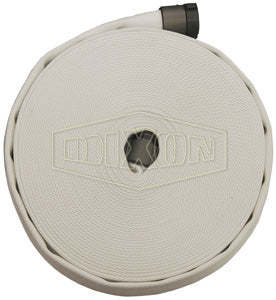

A315-50RAS Dixon 300# Single Jacket All Polyester Fire Hose - Coupled - Fem. x Male NPSH Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 1-3/4" Bowl Size - 50ft Length

A315-50RAS Dixon 300# Single Jacket All Polyester Fire Hose - Coupled - Fem. x Male NPSH Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 1-3/4" Bowl Size - 50ft Length

Minimum Order Quantity: 10 Units

Sale price$16.57

Dixon Fire Fittings
Fire Hose - 300# Single Jacket All Polyester Fire Hose - Coupled
Buy More, Save More!
Quantity Price Each
20–39 $15.58
40–79 $14.08
80+ $12.43
Discounts applied in cart/checkout.

Product Data:

Series:
  • Fire Hose
Color(s):
  • White/Off-White
Internal Diameter:
  • 1.5in
Features:
  • Outer construction: single jacket, all polyester
  • Tube construction: EPDM rubber lining
  • Proof pressure: 300 PSI
  • Service test pressure: 150 PSI at ambient temperature 70°F (21°C)
  • Working pressure: 135 PSI at ambient temperature 70°F (21°C)
Part Number Size Bowl Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Aluminum Expansion Ring Couplings with Rocker Lugs
A315-50RAF 1-1/2" 1-3/4" 50 ft 10.5600
A315100RAF 1-1/2" 1-3/4" 100 ft 14.5000
A325-50RAF 2-1/2" 2-13/16" 50 ft 23.3300
A325100RAF 2-1/2" 2-13/16" 100 ft 43.7000
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings with Rocker Lugs
A315-50RBF 1-1/2" 1-3/4" 50 ft 13.5000
A315100RBF 1-1/2" 1-3/4" 100 ft 23.0000
A325-50RBF 2-1/2" 2-13/16" 50 ft 25.0000
A325100RBF 2-1/2" 2-13/16" 100 ft 35.0000
Coupled with Female x Male NPSH Aluminum Expansion Ring Couplings with Rocker Lugs
A315-50RAS 1-1/2" 1-3/4" 50 ft 13.1700
A315100RAS 1-1/2" 1-3/4" 100 ft 22.0000
A320-50RAS 2" 2-1/4" 50 ft 17.3000
A320100RAS 2" 2-1/4" 100 ft N/A
A325-50RAS 2-1/2" 2-13/16" 50 ft 22.1500
A325100RAS 2-1/2" 2-13/16" 100 ft 25.0000
A330-50RAS 3" 3-3/8" 50 ft 29.1600
A330100RAS 3" 3-3/8" 100 ft N/A

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
