A23-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating

A23-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 5/8x18 Thread SAE 45° Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating

Sale price$16.73

Couplamatic Systems Inc.
A Series - SAE 45° Seat - 90° Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $15.73
40–79 $14.22
80+ $12.55
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

90 Degree

Ends Configuration:
  • 3/8in Female SAE 45 Flare
  • 3/8in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

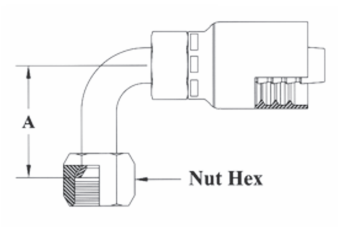

Part Number Hose ID Thread Size Tube OD A - Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead Z
A23-6x6 3/8" 5/8x18 3/8" 0.91" 3/4" 06Z-446

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
