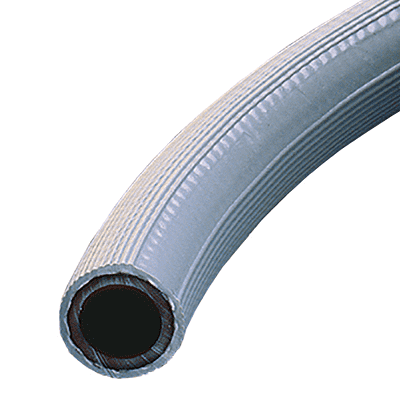

A1628-08X300 Kuri-Tec by Kuriyama | A1628 Series | Blend Reinforced Spray Hose | 1/2" ID | .770" OD | 300 PSI | PVC | Polyurethane | 300ft Length
Kuriyama Kuri Tec® A1628 Series 300 PSI PVC/Polyurethane Blend Reinforced Spray Hose Unique PVC/Polyurethane blended core provides excellent resistance to hydrocarbon-based lawn care and pest control chemicals. Reinforced with high tensile strength yarn. PVC ribbed cover provides abrasion resistance.
Package Quantity: 300 FT
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
Application: | Pest control spraying, Agricultural spraying, Commercial weed spraying | SAE Rating: | N/A |
---|---|---|---|
Other Ratings: | N/A | Tube: | Black PVC/polyurethane blend |
Reinforcement: | High tensile strength yarn. | Cover: | Ribbed PVC. |
Temperature Range: | +15 deg. F (-10 deg. C) to +160 deg. F (+70 deg. C) | Crimp Fittings: | N/A |
Reusable Fittings: | N/A | Specifications | N/A |
Other Features: | |||
|
Part Number | Nominal ID | Nominal OD | Max. Working Pressure | Standard Lengths | Approx Weight per Pkg | |||
---|---|---|---|---|---|---|---|---|
(in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | @ 122 deg. F (50 deg. C) (PSI) | Coil | ||
A1628-06X300 | 3/8" | 9.5mm | .625" | 15.9mm | 300 PSI | 150 PSI | 300 ft | 36 lbs. |
A1628-06X400 | 3/8" | 9.5mm | .625" | 15.9mm | 300 PSI | 150 PSI | 400 ft | 47 lbs. |
A1628-08X300 | 1/2" | 12.7mm | .770" | 19.6mm | 300 PSI | 150 PSI | 300 ft | 49 lbs. |
A1628-08X400 | 1/2" | 12.7mm | .770" | 19.6mm | 300 PSI | 150 PSI | 400 ft | 65 lbs. |
A1628-12X300 | 3/4" | 19.1mm | 1.060" | 26.9mm | 200 PSI | 100 PSI | 300 ft | 80 lbs. |
A1628-16X200 | 1" | 25.4mm | 1.306" | 33.2mm | 200 PSI | 100 PSI | 200 ft | 67 lbs. |
