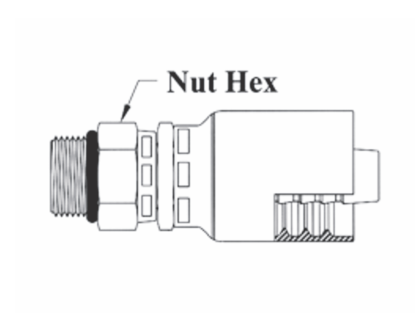

A12-8x10 by Couplamatic | A Series Coupling | 1/2" Hose ID x 7/8x14 Thread ORB Male Swivel | Straight

A12-8x10 by Couplamatic | A Series Coupling | 1/2" Hose ID x 7/8x14 Thread ORB Male Swivel | Straight

Sale price$13.82

Couplamatic Systems Inc.
A Series - ORB - Male Swivel
Buy More, Save More!
Quantity Price Each
10–39 $12.99
40–79 $11.75
80+ $10.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

Straight

Ends Configuration:
  • 5/8in Male O-Ring Boss
  • 1/2in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A12-4x4 1/4" 7/16x20 1/4" 5/8" 1AA4SB4 04Z-R04
A12-6x6 3/8" 9/16x18 3/8" 3/4" 1AA6SB6 06Z-R06
A12-6x8 3/8" 3/4x16 1/2" 7/8" 1AA8SB6 06Z-R08
A12-8x8 1/2" 3/4x16 1/2" 7/8" 1AA8SB8 08Z-R08
A12-8x10 1/2" 7/8x14 5/8" 1" 1AA10SB8 08Z-R10

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
