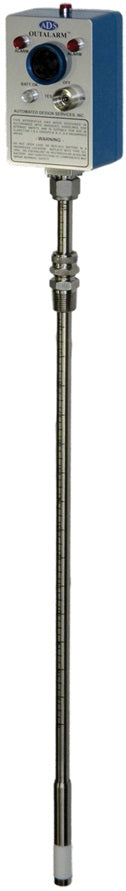

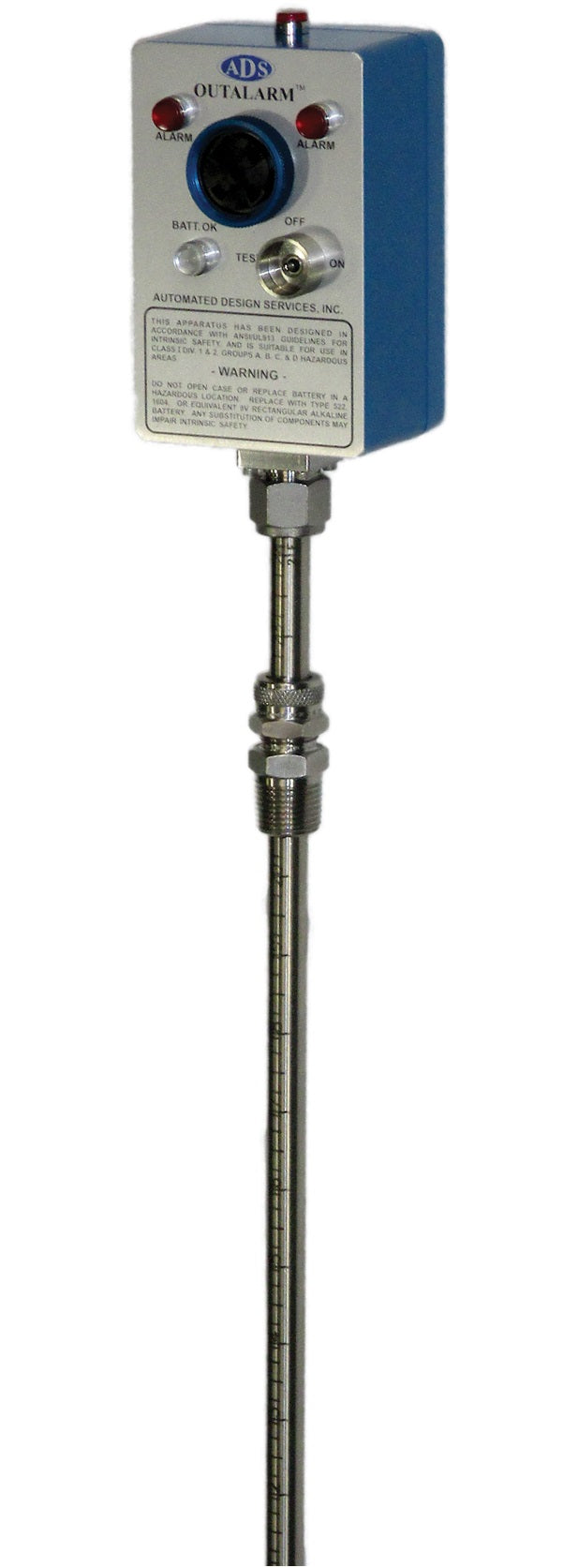

A100C12A by Dixon Valve | A100 Outalarm® | with Capacitance Probe | 12" Length
A100C12A by Dixon Valve | A100 Outalarm® | with Capacitance Probe | 12" Length

A100C12A by Dixon Valve | A100 Outalarm® | with Capacitance Probe | 12" Length

Sale price$2,529.09
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Totally self-contained; no wires, tubing, or external power.
  • Rugged weather- and corrosion-resistant construction.
  • No moving parts, tip sensitive phase shift digital capacitance sensor for conductive and non-conductive fluid; conductivity sensor available for conductive fluids.
  • Requires no calibration or adjustment.
  • Adjustable insertion length through a standard 1/2" NPT fitting.
  • High-intensity audible and flashing visual outputs.
  • Optional opto-isolated solid state contact output.
  • Full, hard, graduated, laser-engraved rod.
  • A100 operates up to 2,500 hours on a single 9V alkaline battery in standby mode.
  • Fail-safe, continuous battery monitor goes to alarm state on low battery.
  • Battery current drain <0.23 mA during standby; <60 mA in alarm state.
Materials:
  • Wetted materials: 316 stainless steel, PTFE standard.
Specifications:
  • Minimum dielectric constant: 1.8
  • Temperature range:
    • Capacitance probe: -14°F to 250°F (-26°C to 121°C)
    • High-temp capacitance probe: -14°F to 325°F (-26°C to 163°C)
    • Outalarm® monitor: -40°F to 150°F (-40°C to 65°C)
  • Activation point: 1/4" into liquid surface.
  • Compatible with any liquid or dry bulk material with a dielectric constant of 1.8 or greater.
  • Horn intensity: 101 dB at 2'.
  • Light output: three each 3,000 mcd high-intensity red flashing LEDs.
  • Pressure rating on standard unit: 50 PSI; consult Dixon® for applications up to 300 PSI.
Approvals:
  • Intrinsically safe design per ANSI/UL913 for Class I, Div I Groups A, B, C, and D Hazardous Areas.
Capacitance
250°F (121°C) Max
Part Number		 Hi-temp Capacitance
325°F (163°C) Max
Part Number		 Length
A100C12A - 12"
A100C24A - 24"
A100C36A - 36"
A100C48A A100HC48A 48"
A100C60A A100HC60A 60"
A100C72A A100HC72A 72"
A100C84A A100HC84A 84"

Additional Product Data:

Series:
  • A100 Outalarm
