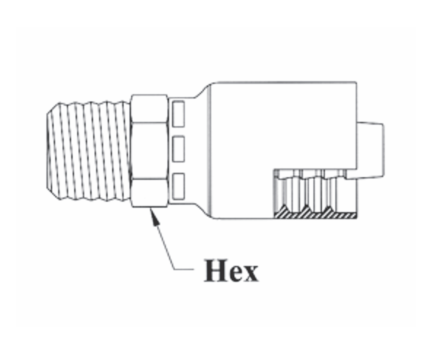

A01-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x 1/4-18 Thread NPTF Male Solid | Straight
Minimum Order Quantity: 5 Units
Couplamatic Systems Inc.
A Series - NPTF - Male Solid
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $3.88 |
| 20–59 | $3.51 |
| 60+ | $3.10 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Aeroquip TTC | Weatherhead Z | |||||
| A01-4x2 | 1/4" | 1/8" | 1/8-27 | 9/16" | 1AA2MP4 | 04Z-102 |
| A01-4x4 | 1/4" | 1/4" | 1/4-18 | 9/16" | 1AA4MP4 | 04Z-104 |
| A01-4x6 | 1/4" | 3/8" | 3/8-18 | 11/16" | 1AA6MP4 | 04Z-106 |
| A01-4x8 | 1/4" | 1/2" | 1/2-14 | 7/8" | 1AA8MP4 | 04Z-108 |
| A01-6x4 | 3/8" | 1/4" | 1/4-18 | 3/4" | 1AA4MP6 | 06Z-104 |
| A01-6x6 | 3/8" | 3/8" | 3/8-18 | 3/4" | 1AA6MP6 | 06Z-106 |
| A01-6x8 | 3/8" | 1/2" | 1/2-14 | 7/8" | 1AA8MP6 | 06Z-108 |
| A01-8x6 | 1/2" | 3/8" | 3/8-18 | 7/8" | 1AA6MP8 | 08Z-106 |
| A01-8x8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 1AA8MP8 | 08Z-108 |
| A01-8x12 | 1/2" | 3/4" | 3/4-14 | 1-1/8" | 1AA12MP8 | 08Z-112 |
| A01-10x8 | 5/8" | 1/2" | 1/2-14 | 15/16" | 1AA8MP10 | 10Z-108 |
| A01-10x12 | 5/8" | 3/4" | 3/4-14 | 1-1/8" | 1AA12MP10 | 10Z-112 |
| A01-12x8 | 3/4" | 1/2" | 1/2-14 | 1-1/8" | 1AA8MP12 | 12Z-108 |
| A01-12x12 | 3/4" | 3/4" | 3/4-14 | 1-1/8" | 1AA12MP12 | 12Z-112 |
| A01-12x16 | 3/4" | 1" | 1-11-1/2 | 1-3/8" | 1AA16MP12 | 12Z-116 |
| A01-16x12 | 1" | 3/4" | 3/4-14 | 1-3/8" | - | 16Z-112 |
| A01-16x16 | 1" | 1" | 1-11-1/2 | 1-3/8" | 1AA16MP16 | 16Z-116 |
| A01-20x20 | 1-1/4" | 1-1/4" | 1-1/4-11-1/2 | 1-11/16" | 1AV20MP20 | 20Z-120 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
