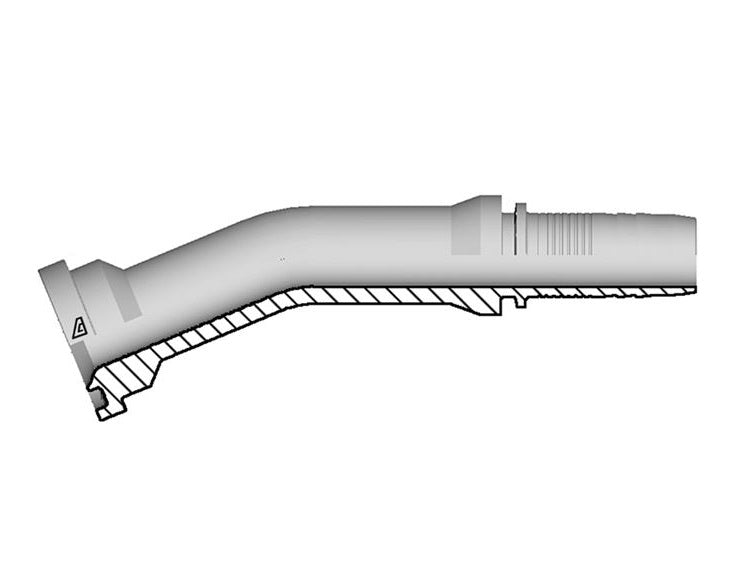

A-2024-C612 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 22° Elbow | -20 Hose ID x -24 Code 61 Flange | Steel

A-2024-C612 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 22° Elbow | -20 Hose ID x -24 Code 61 Flange | Steel

Sale price$89.07

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 22° Elbow | Hose Barb x Code 61 Flange
Buy More, Save More!
Quantity Price Each
5–19 $83.73
20–59 $75.71
60+ $66.80
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

22 Degree
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) lbs/each
A-1616-C612 16 1" 25.4mm 1.75" 44.5mm 86.4mm 12.0mm 1.01 lbs
A-2020-C612 20 1-1/4" 31.8mm 2.00" 50.8mm 100.6mm 16.0mm 1.29 lbs
A-2024-C612 20 1-1/4" 31.8mm 2.38" 60.3mm 117.0mm 20.5mm 1.54 lbs
A-2424-C612 24 1-1/2" 38.1mm 2.38" 60.3mm 133.5mm 22.0mm 1.79 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
