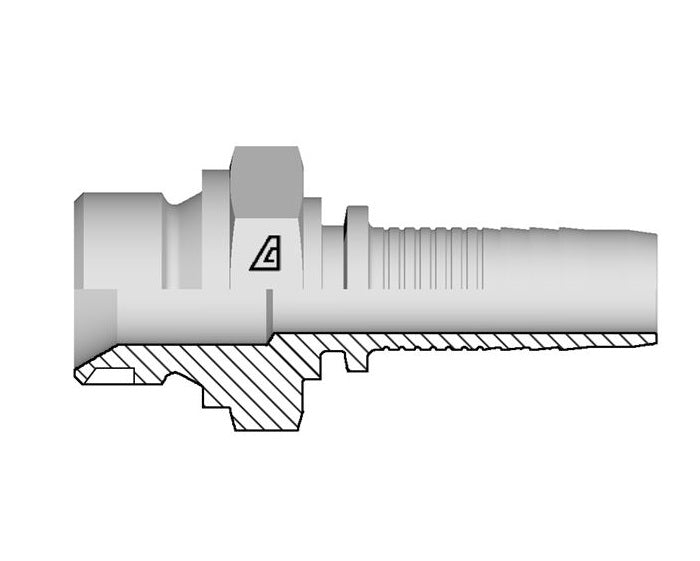

A-1212-MBPP Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -12 Male BSPP 60° Seat | Steel

A-1212-MBPP Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -12 Male BSPP 60° Seat | Steel

Sale price$16.04

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male BSPP 60° Seat
Buy More, Save More!
Quantity Price Each
10–39 $15.08
40–79 $13.63
80+ $12.03
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0402-MBPP 04 1/4" 6.4mm 02 1/8-28 21.7mm 14mm 0.04 lbs
A-0404-MBPP 04 1/4" 6.4mm 04 1/4-19 26.3mm 19mm 0.07 lbs
A-0406-MBPP 04 1/4" 6.4mm 06 3/8-19 27.8mm 22mm 0.10 lbs
A-0506-MBPP 05 5/16" 7.9mm 06 3/8-19 27.8mm 22mm 0.11 lbs
A-0604-MBPP 06 3/8" 9.5mm 04 1/4-19 26.3mm 19mm 0.11 lbs
A-0606-MBPP 06 3/8" 9.5mm 06 3/8-19 27.8mm 22mm 0.11 lbs
A-0608-MBPP 06 3/8" 9.5mm 08 1/2-14 31.3mm 27mm 0.18 lbs
A-0806-MBPP 08 1/2" 12.7mm 06 3/8-19 28.6mm 22mm 0.14 lbs
A-0808-MBPP 08 1/2" 12.7mm 08 1/2-14 32.1mm 27mm 0.20 lbs
A-0810-MBPP 08 1/2" 12.7mm 10 5/8-14 36.1mm 30mm 0.27 lbs
A-0812-MBPP 08 1/2" 12.7mm 12 3/4-14 34.1mm 32mm 0.27 lbs
A-1008-MBPP 10 5/8" 15.9mm 08 1/2-14 34.1mm 30mm 0.27 lbs
A-1010-MBPP 10 5/8" 15.9mm 10 5/8-14 36.1mm 30mm 0.27 lbs
A-1012-MBPP 10 5/8" 15.9mm 12 3/4-14 34.1mm 32mm 0.29 lbs
A-1212-MBPP 12 3/4" 19.0mm 12 3/4-14 34.6mm 32mm 0.31 lbs
A-1216-MBPP 12 3/4" 19.0mm 16 1-11 39.6mm 41mm 0.53 lbs
A-1616-MBPP 16 1" 25.4mm 16 1-11 40.4mm 41mm 0.58 lbs
A-1620-MBPP 16 1" 25.4mm 20 1-1/4-11 42.4mm 50mm 0.82 lbs
A-2020-MBPP 20 1-1/4" 31.8mm 20 1-1/4-11 47.0mm 50mm 0.98 lbs
A-2424-MBPP 24 1-1/2" 38.1mm 24 1-1/2-11 49.0mm 55mm 1.19 lbs
A-3232-MBPP 32 2" 50.8mm 32 2-11 53.5mm 70mm 2.01 lbs
