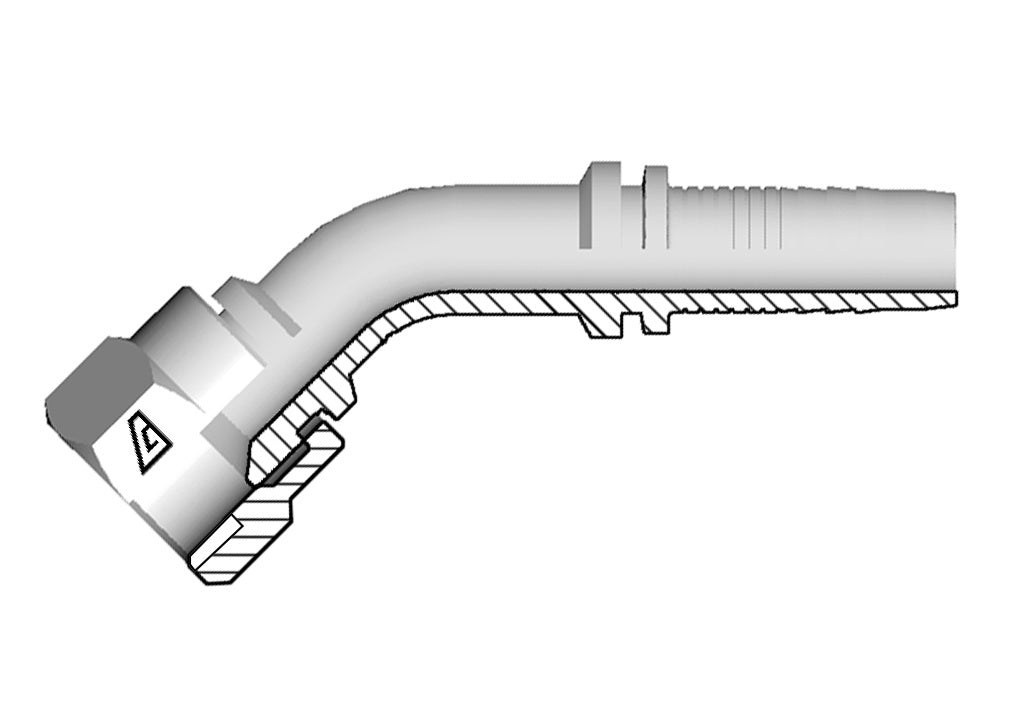

A-1012-FAE4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -10 Hose ID x -12 Female SAE 45° Seat | Steel

A-1012-FAE4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -10 Hose ID x -12 Female SAE 45° Seat | Steel

Sale price$45.12

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female SAE 45° Seat
Buy More, Save More!
Quantity Price Each
10–39 $42.41
40–79 $38.35
80+ $33.84
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

45 Degree
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0506-FAE4 05 5/16" 7.9mm 06 5/8-18 43mm 12mm 22mm 0.13 lbs
A-0606-FAE4 06 3/8" 9.5mm 06 5/8-18 46mm 12mm 22mm 0.14 lbs
A-1012-FAE4 10 5/8" 15.9mm 12 1-1/16-14 69mm 21mm 32mm 0.45 lbs
A-1212-FAE4 12 3/4" 19.0mm 12 1-1/16-14 68mm 21mm 32mm 0.48 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
