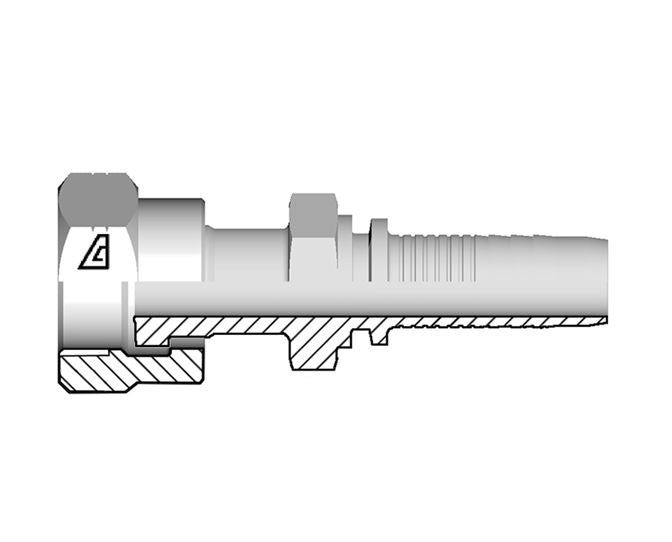

A-0608-FOFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | -06 Hose ID x -08 Female O-Ring Face Seal | Steel

A-0608-FOFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | -06 Hose ID x -08 Female O-Ring Face Seal | Steel | Pack of 5

Sale price$66.55

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | Hose Barb x Female O-Ring Face Seal


Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
10–39 $62.56
40–79 $56.57
80+ $49.91
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • A Series
Shape:

Straight
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-FOFS 04 1/4" 6.4mm 04 9/16-18 27.3mm 14mm 17mm 0.08 lbs
A-0406-FOFS 04 1/4" 6.4mm 06 11/16-16 30.3mm 17mm 22mm 0.13 lbs
A-0506-FOFS 05 5/16" 7.9mm 06 11/16-16 30.3mm 17mm 22mm 0.13 lbs
A-0606-FOFS 06 3/8" 9.5mm 06 11/16-16 30.3mm 17mm 22mm 0.14 lbs
A-0608-FOFS 06 3/8" 9.5mm 08 13/16-16 35.3mm 22mm 24mm 0.21 lbs
A-0806-FOFS 08 1/2" 12.7mm 06 11/16-16 32.1mm 19mm 22mm 0.22 lbs
A-0808-FOFS 08 1/2" 12.7mm 08 13/16-16 36.1mm 22mm 24mm 0.22 lbs
A-0810-FOFS 08 1/2" 12.7mm 10 1-14 39.6mm 24mm 30mm 0.32 lbs
A-0812-FOFS 08 1/2" 12.7mm 12 1-3/16-12 42.1mm 30mm 36mm 0.32 lbs
A-1008-FOFS 10 5/8" 15.9mm 08 13/16-16 39.6mm 24mm 24mm 0.31 lbs
A-1010-FOFS 10 5/8" 15.9mm 10 1-14 39.6mm 24mm 30mm 0.32 lbs
A-1012-FOFS 10 5/8" 15.9mm 12 1-3/16-12 42.1mm 30mm 36mm 0.50 lbs
A-1210-FOFS 12 3/4" 19.0mm 10 1-14 40.1mm 27mm 30mm 0.50 lbs
A-1212-FOFS 12 3/4" 19.0mm 12 1-3/16-12 42.6mm 30mm 36mm 0.50 lbs
A-1216-FOFS 12 3/4" 19.0mm 16 1-7/16-12 48.6mm 36mm 41mm 0.73 lbs
A-1612-FOFS 16 1" 25.4mm 12 1-3/16-12 45.4mm 32mm 36mm 0.73 lbs
A-1616-FOFS 16 1" 25.4mm 16 1-7/16-12 49.4mm 36mm 41mm 0.73 lbs
A-1620-FOFS 16 1" 25.4mm 20 1-11/16-12 50.4mm 41mm 50mm 0.79 lbs
A-2020-FOFS 20 1-1/4" 31.8mm 20 1-11/16-12 52.0mm 41mm 50mm 1.10 lbs
A-2424-FOFS 24 1-1/2" 38.1mm 24 2-12 56.5mm 50mm 60mm 1.76 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
