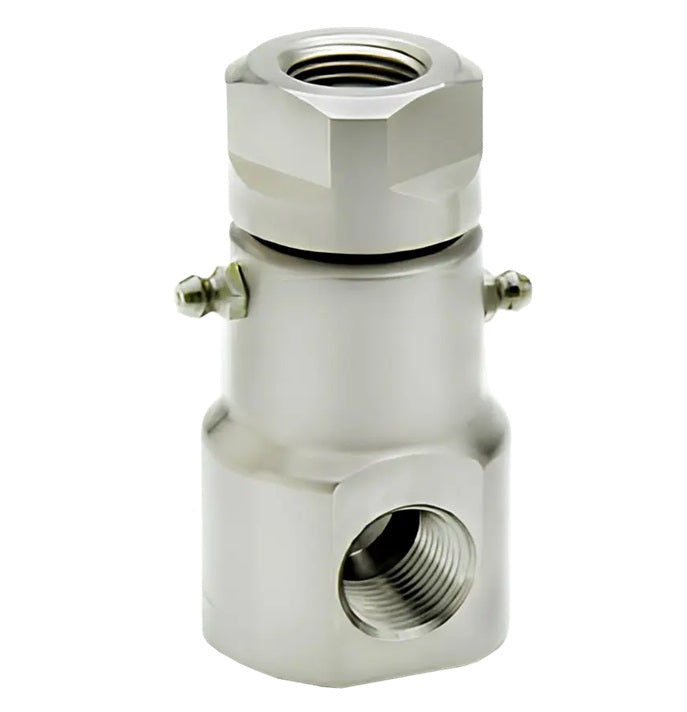

9SS8HPFP50XFP50-Ni-90V by Super Swivel | 5923-Ni-90V | High Pressure 1/2-14 Female Pipe NPTF x 1/2-14 Female NPTF | 0.437" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal
9SS8HPFP50XFP50-Ni-90V by Super Swivel | 5923-Ni-90V | High Pressure 1/2-14 Female Pipe NPTF x 1/2-14 Female NPTF | 0.437" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal

9SS8HPFP50XFP50-Ni-90V by Super Swivel | 5923-Ni-90V | High Pressure 1/2-14 Female Pipe NPTF x 1/2-14 Female NPTF | 0.437" Through Hole | 90° Elbow | Electroless Nickel | Viton Seal

Sale price$212.75

Super Swivels
90° High Pressure Swivels 10,000 PSI - Female Pipe NPTF X Female Pipe NPTF
Buy More, Save More!
Quantity Price Each
5–19 $199.99
20–59 $180.84
60+ $159.56
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female NPTF
  • 1/2in Female NPTF
  • Some Ends Match
Material(s):
  • Nickel-Plated Carbon Steel
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)

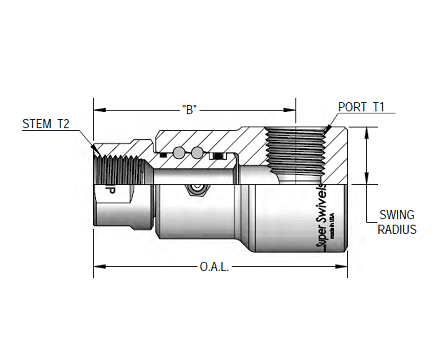

Part Number Material Seal Overall
Length		 Dim.
B		 Dim.
D Ø		 Wrench Port T1 Stem T2 SWG.
Radius		 Max
PSIG		 Through
Hole
9SS8HPFP38XFP38-NI-90V Electroless Nickel Viton 2.940" 2.340" 1.520" 1.125" 3/8-18 NPTF 3/8-18 NPTF 0.660" 10,000 PSIG 0.437"
9SS8HPFP50XFP50-NI-90V Electroless Nickel Viton 3.470" 2.895" 1.842" 1.125" 1/2-14 NPTF 1/2-14 NPTF 1.048" 10,000 PSIG 0.437"
9SS8HPFP50XFP50-NI-AL-POLY Electroless Nickel AFLAS 3.470" 2.895" 1.842" 1.125" 1/2-14 NPTF 1/2-14 NPTF 1.048" 10,000 PSIG 0.437"

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
