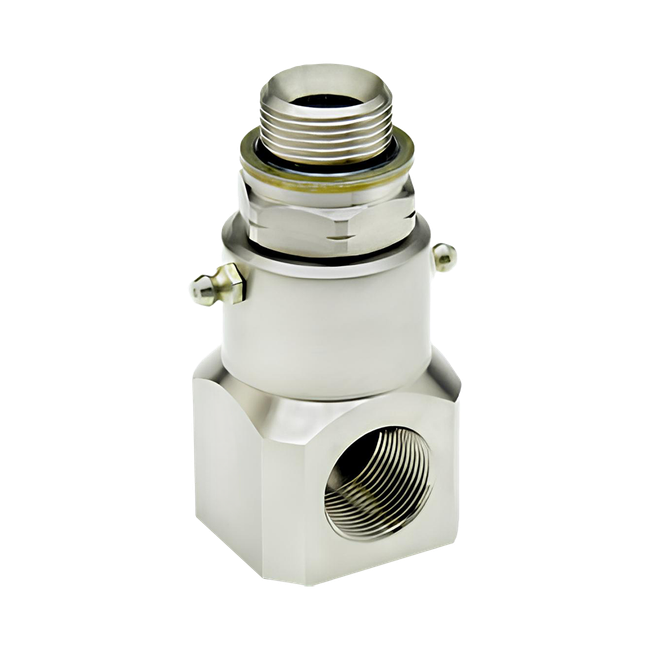

9SS12DBMBSPP12XFBSPP12-Z-V by Super Swivel | #40500 | G 3/4-14 Male BSPP x G 3/4-14 Female BSPP | 0.630" Through Hole | 90° Elbow | Zinc | Viton Seal

9SS12DBMBSPP12XFBSPP12-Z-V by Super Swivel | #40500 | G 3/4-14 Male BSPP x G 3/4-14 Female BSPP | 0.630" Through Hole | 90° Elbow | Zinc | Viton Seal

Sale price$93.00

Super Swivels
BSPP 90° Swivels - Male BSPP X Female BSPP
Buy More, Save More!
Quantity Price Each
5–19 $87.42
20–59 $79.05
60+ $69.75
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Male BSPP
  • 3/4in Female BSPP
Seal Material(s):
  • Viton
Features:
  • BSPP Swivels (British Standard Parallel Pipe) are most common in the UK, Europe, Asia, Australia, New Zealand and South Africa.
  • A parallel thread fitting uses a bonded seal ring.
  • This bonded ring seal is sandwiched in-between a shoulder on the male fitting and the face of the female fitting and is squeezed in place with no thread sealant required.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • BSPP sizes range from 1/4" through 11/2" body thread with multiple fittings and seal configurations including Inline and 90° Swivels.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
Part Number Material Seal Overall
Length		 Dim.
B		 Dim.
D Ø		 Dim.
E		 Wrench
Hex		 Port T1 Stem T2 Dim.
F		 Max
Pressure		 Through
Hole
9SS4MBSPP4XFBSPP4-Z-V Zinc Viton 2.810"
71.4mm		 2.350"
59.7mm		 1.318"
33.5mm		 1.858"
47.2mm		 0.812"
20.6mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.519"
13.2mm		 5,000 PSI
345 BAR		 0.250"
6.3mm
9SS4MBSPP4XFBSPP4-Z-AL Zinc AFLAS
9SS4MBSPP4XFBSPP4-Z-ETP Zinc Viton Extreme
9SS4MBSPP4XFBSPP4-NI-V Electroless Nickel Viton 2.810"
71.4mm		 2.350"
59.7mm		 1.318"
33.5mm		 1.858"
47.2mm		 0.812"
20.6mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.519"
13.2mm		 5,000 PSI
345 BAR		 0.250"
6.3mm
9SS4MBSPP4XFBSPP4-NI-AL Electroless Nickel AFLAS
9SS4MBSPP4XFBSPP4-NI-ETP Electroless Nickel Viton Extreme
9SS6MBSPP6XFBSPP6-Z-V Zinc Viton 2.947"
74.9mm		 2.367"
60.1mm		 1.450"
36.8mm		 1.992"
50.6mm		 0.937"
23.8mm		 G 3/8-19 BSPP G 3/8-19 BSPP 0.552"
14.0mm		 5,000 PSI
345 BAR		 0.312"
7.9mm
9SS6MBSPP6XFBSPP6-Z-AL Zinc AFLAS
9SS6MBSPP6XFBSPP6-Z-ETP Zinc Viton Extreme
9SS6MBSPP6XFBSPP6-NI-V Electroless Nickel Viton 2.947"
74.9mm		 2.367"
60.1mm		 1.450"
36.8mm		 1.992"
50.6mm		 0.937"
23.8mm		 G 3/8-19 BSPP G 3/8-19 BSPP 0.552"
14.0mm		 5,000 PSI
345 BAR		 0.312"
7.9mm
9SS6MBSPP6XFBSPP6-NI-AL Electroless Nickel AFLAS
9SS6MBSPP6XFBSPP6-NI-ETP Electroless Nickel Viton Extreme
9SS8DBMBSPP8XFBSPP8-Z-V Zinc Viton 3.412"
86.7mm		 2.781"
70.6mm		 1.724"
43.8mm		 2.170"
55.1mm		 1.125"
28.6mm		 G 1/2-14 BSPP G 1/2-14 BSPP 0.653"
16.6mm		 5,000 PSI
345 BAR		 0.406"
10.3mm
9SS8DBMBSPP8XFBSPP8-Z-AL Zinc AFLAS
9SS8DBMBSPP8XFBSPP8-Z-ETP Zinc Viton Extreme
9SS8DBMBSPP8XFBSPP8-NI-V Electroless Nickel Viton 3.412"
86.7mm		 2.781"
70.6mm		 1.724"
43.8mm		 2.170"
55.1mm		 1.125"
28.6mm		 G 1/2-14 BSPP G 1/2-14 BSPP 0.653"
16.6mm		 5,000 PSI
345 BAR		 0.406"
10.3mm
9SS8DBMBSPP8XFBSPP8-NI-AL Electroless Nickel AFLAS
9SS8DBMBSPP8XFBSPP8-NI-ETP Electroless Nickel Viton Extreme
9SS12DBMBSPP12XFBSPP12-Z-V Zinc Viton 3.922"
99.6mm		 3.142"
79.8mm		 2.184"
55.5mm		 2.370"
66.3mm		 1.312"
33.3mm		 G 3/4-14 BSPP G 3/4-14 BSPP 0.849"
21.6mm		 5000 PSI
345 BAR		 0.630"
16.0mm
9SS12DBMBSPP12XFBSPP12-Z-AL Zinc AFLAS
9SS12DBMBSPP12XFBSPP12-Z-ETP Zinc Viton Extreme
9SS12DBMBSPP12XFBSPP12-NI-V Electroless Nickel Viton 3.922"
99.6mm		 3.142"
79.8mm		 2.184"
55.5mm		 2.370"
66.3mm		 1.312"
33.3mm		 G 3/4-14 BSPP G 3/4-14 BSPP 0.849"
21.6mm		 5000 PSI
345 BAR		 0.630"
16.0mm
9SS12DBMBSPP12XFBSPP12-NI-AL Electroless Nickel AFLAS
9SS12DBMBSPP12XFBSPP12-NI-ETP Electroless Nickel Viton Extreme
9SS16DBMBSPP16XFBSPP16-Z-V Zinc Viton 4.648"
118.1mm		 3.733"
94.8mm		 2.588"
65.7mm		 2.610"
66.3mm		 1.625"
41.3mm		 G 1-11 BSPP G 1-11 BSPP 0.982"
24.9mm		 4,500 PSI
310 BAR		 0.787"
20.0mm
9SS16DBMBSPP16XFBSPP16-Z-AL Zinc AFLAS
9SS16DBMBSPP16XFBSPP16-Z-ETP Zinc Viton Extreme
9SS16DBMBSPP16XFBSPP16-NI-V Electroless Nickel Viton 4.648"
118.1mm		 3.733"
94.8mm		 2.588"
65.7mm		 2.610"
66.3mm		 1.625"
41.3mm		 G 1-11 BSPP G 1-11 BSPP 0.982"
24.9mm		 4,500 PSI
310 BAR		 0.787"
20.0mm
9SS16DBMBSPP16XFBSPP16-NI-AL Electroless Nickel AFLAS
9SS16DBMBSPP16XFBSPP16-NI-ETP Electroless Nickel Viton Extreme
9SS20MBSPP20XFBSPP20-Z-V Zinc Viton 5.115"
129.9mm		 4.015"
102.0mm		 3.088"
78.4mm		 3.050"
77.5mm		 2.000"
50.8mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 1.149"
29.2mm		 4,000 PSI
275 BAR		 0.984"
25.0mm
9SS20MBSPP20XFBSPP20-Z-AL Zinc AFLAS
9SS20MBSPP20XFBSPP20-Z-ETP Zinc Viton Extreme
9SS20MBSPP20XFBSPP20-NI-V Electroless Nickel Viton 5.115"
129.9mm		 4.015"
102.0mm		 3.088"
78.4mm		 3.050"
77.5mm		 2.000"
50.8mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 1.149"
29.2mm		 4,000 PSI
275 BAR		 0.984"
25.0mm
9SS20MBSPP20XFBSPP20-NI-AL Electroless Nickel AFLAS
9SS20MBSPP20XFBSPP20-NI-ETP Electroless Nickel Viton Extreme
9SS24MBSPP24XFBSPP24-NI-ETP Electroless Nickel Viton Extreme 6.385"
162.2mm		 5.115"
129.9mm		 3.576"
90.8mm		 3.240"
82.3mm		 2.250"
57.1mm		 G 1-1/2-11 BSPP G 1-1/2-11 BSPP 1.366"
34.7mm		 4,000 PSI
275 BAR		 1.260"
32.0mm
