9DP16MFS16XMFS16-Z-V by Super Swivel | DP7640-Z-V | Dual Plane Swivel | 1-7/16-12 Male Face Seal MFS x 1-7/16-12 Male Face Seal MFS | 0.484" Through Hole | 90° Elbow | Zinc | Viton Seal
9DP16MFS16XMFS16-Z-V by Super Swivel | DP7640-Z-V | Dual Plane Swivel | 1-7/16-12 Male Face Seal MFS x 1-7/16-12 Male Face Seal MFS | 0.484" Through Hole | 90° Elbow | Zinc | Viton Seal

9DP16MFS16XMFS16-Z-V by Super Swivel | DP7640-Z-V | Dual Plane Swivel | 1-7/16-12 Male Face Seal MFS x 1-7/16-12 Male Face Seal MFS | 0.484" Through Hole | 90° Elbow | Zinc | Viton Seal

Sale price$188.44

Super Swivels
90° Dual Plane Swivels - Male Face Seal MFS X Male Face Seal MFS
Buy More, Save More!
Quantity Price Each
5–19 $177.13
20–59 $160.17
60+ $141.33
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1in Male O-Ring Face Seal
  • 1in Male O-Ring Face Seal
  • Some Ends Match
Material(s):
  • Zink-Plated Carbon Steel
Features:

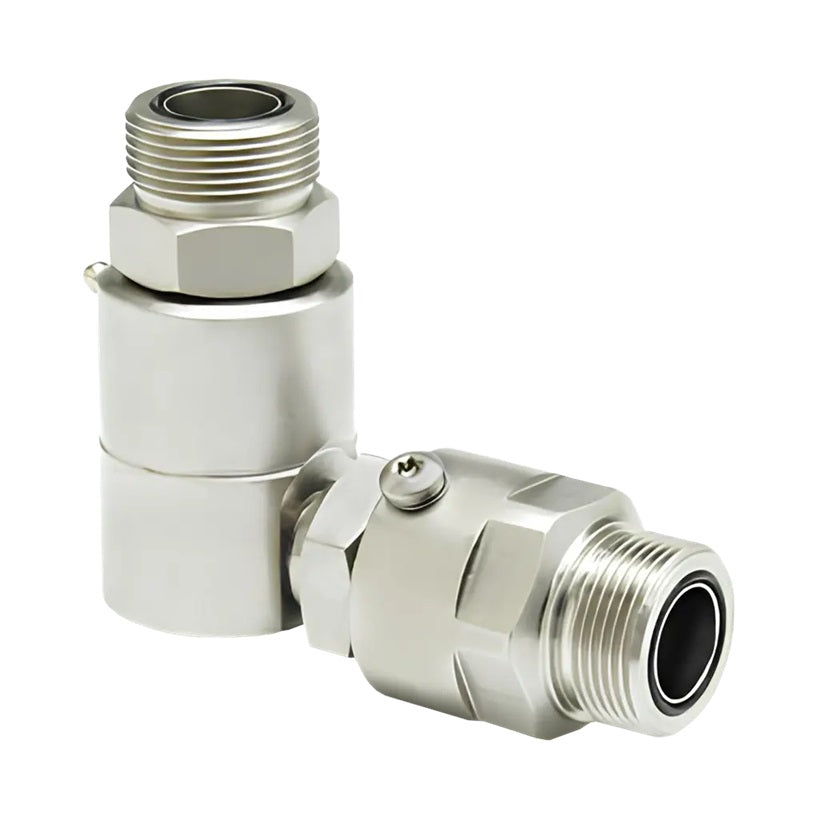

  • 90° Dual Plane Swivels rotating joints provide free rotation on two axis's with a right-angle change of path.
  • By having two lines with full rotation the complexity of hose lines can be reduced providing minimal friction and allowing free movement of hoses and piping.
  • 90° Dual Plane Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation on two paths.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)
Part Number Material Seal Overall
Length		 Dim.

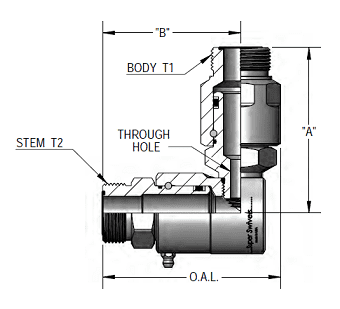

B		 Body Wrench / Hex Body T1 Stem T2 Dim.
A		 Max
PSIG		 Through
Hole
9DP4MFS6XMFS6-Z-V Zinc Viton 2.753" 2.176" 1.000" 0.750" 11/16-16 UN 11/16-16 UN 2.609" 5000 PSIG 0.250"
9DP4MFS6XMFS6-Z-AL Zinc AFLAS 2.753" 2.176" 1.000" 0.750" 11/16-16 UN 11/16-16 UN 2.609" 5000 PSIG 0.250"
9DP4MFS6XMFS6-Z-ETP Zinc Extreme Viton® 2.753" 2.176" 1.000" 0.750" 11/16-16 UN 11/16-16 UN 2.609" 5000 PSIG 0.250"
9DP4MFS6XMFS6-NI-V Electroless Nickel Viton 2.753" 2.176" 1.000" 0.750" 11/16-16 UN 11/16-16 UN 2.609" 5000 PSIG 0.250"
9DP4MFS6XMFS6-NI-AL Electroless Nickel AFLAS 2.753" 2.176" 1.000" 0.750" 11/16-16 UN 11/16-16 UN 2.609" 5000 PSIG 0.250"
9DP4MFS6XMFS6-NI-ETP Electroless Nickel Extreme Viton® 2.753" 2.176" 1.000" 0.750" 11/16-16 UN 11/16-16 UN 2.609" 5000 PSIG 0.250"
9DP8MFS8XMFS8-Z-V Zinc Viton 3.155" 2.362" 1.375" 1.000" 13/16-16 UN 13/16-16 UN 2.912" 5000 PSIG 0.297"
9DP8MFS8XMFS8-Z-AL Zinc AFLAS 3.155" 2.362" 1.375" 1.000" 13/16-16 UN 13/16-16 UN 2.912" 5000 PSIG 0.297"
9DP8MFS8XMFS8-NI-V Electroless Nickel Viton 3.155" 2.362" 1.375" 1.000" 13/16-16 UN 13/16-16 UN 2.912" 5000 PSIG 0.297"
9DP8MFS8XMFS8-NI-AL Electroless Nickel AFLAS 3.155" 2.362" 1.375" 1.000" 13/16-16 UN 13/16-16 UN 2.912" 5000 PSIG 0.297"
9DP8MFS10XMFS10-Z-V Zinc Viton 3.351" 2.558" 1.375" 1.125" 1-14 UN 1-14 UN 3.018" 5000 PSIG 0.297"
9DP8MFS10XMFS10-Z-AL Zinc AFLAS 3.351" 2.558" 1.375" 1.125" 1-14 UN 1-14 UN 3.018" 5000 PSIG 0.297"
9DP8MFS10XMFS10-Z-ETP Zinc Extreme Viton® 3.351" 2.558" 1.375" 1.125" 1-14 UN 1-14 UN 3.018" 5000 PSIG 0.297"
9DP8MFS10XMFS10-NI-V Electroless Nickel Viton 3.351" 2.558" 1.375" 1.125" 1-14 UN 1-14 UN 3.018" 5000 PSIG 0.297"
9DP8MFS10XMFS10-NI-AL Electroless Nickel AFLAS 3.351" 2.558" 1.375" 1.125" 1-14 UN 1-14 UN 3.018" 5000 PSIG 0.297"
9DP8MFS10XMFS10-NI-ETP Electroless Nickel Extreme Viton® 3.351" 2.558" 1.375" 1.125" 1-14 UN 1-14 UN 3.018" 5000 PSIG 0.297"
9DP12MFS12XMFS12-Z-V Zinc Viton 3.610" 2.745" 1.560" 1.250" 1-3/16-12 UN 1-3/16-12 UN 3.239" 4500 PSIG 0.391"
9DP12MFS12XMFS12-Z-AL Zinc AFLAS 3.610" 2.745" 1.560" 1.250" 1-3/16-12 UN 1-3/16-12 UN 3.239" 4500 PSIG 0.391"
9DP12MFS12XMFS12-Z-ETP Zinc Extreme Viton® 3.610" 2.745" 1.560" 1.250" 1-3/16-12 UN 1-3/16-12 UN 3.239" 4500 PSIG 0.391"
9DP12MFS12XMFS12-NI-V Electroless Nickel Viton 3.610" 2.745" 1.560" 1.250" 1-3/16-12 UN 1-3/16-12 UN 3.239" 4500 PSIG 0.391"
9DP12MFS12XMFS12-NI-AL Electroless Nickel AFLAS 3.610" 2.745" 1.560" 1.250" 1-3/16-12 UN 1-3/16-12 UN 3.239" 4500 PSIG 0.391"
9DP12MFS12XMFS12-NI-ETP Electroless Nickel Extreme Viton® 3.610" 2.745" 1.560" 1.250" 1-3/16-12 UN 1-3/16-12 UN 3.239" 4500 PSIG 0.391"
9DP16MFS16XMFS16-Z-V Zinc Viton 4.274" 3.316" 1.810" 1.500" 1-7/16-12 UN 1-7/16-12 UN 3.970" 4000 PSIG 0.484"
9DP16MFS16XMFS16-Z-AL Zinc AFLAS 4.274" 3.316" 1.810" 1.500" 1-7/16-12 UN 1-7/16-12 UN 3.970" 4000 PSIG 0.484"
9DP16MFS16XMFS16-Z-ETP Zinc Extreme Viton® 4.274" 3.316" 1.810" 1.500" 1-7/16-12 UN 1-7/16-12 UN 3.970" 4000 PSIG 0.484"
9DP16MFS16XMFS16-NI-V Electroless Nickel Viton 4.274" 3.316" 1.810" 1.500" 1-7/16-12 UN 1-7/16-12 UN 3.970" 4000 PSIG 0.484"
9DP16MFS16XMFS16-NI-AL Electroless Nickel AFLAS 4.274" 3.316" 1.810" 1.500" 1-7/16-12 UN 1-7/16-12 UN 3.970" 4000 PSIG 0.484"
9DP16MFS16XMFS16-NI-ETP Electroless Nickel Extreme Viton® 4.274" 3.316" 1.810" 1.500" 1-7/16-12 UN 1-7/16-12 UN 3.970" 4000 PSIG 0.484"
9DP20MFS20XMFS20-Z-V Zinc Viton 4.827" 3.649" 2.188" 1.750" 1-11/16-12 UN 1-11/16-12 UN 4.446" 4000 PSIG 0.718"
9DP20MFS20XMFS20-Z-AL Zinc AFLAS 4.827" 3.649" 2.188" 1.750" 1-11/16-12 UN 1-11/16-12 UN 4.446" 4000 PSIG 0.718"
9DP20MFS20XMFS20-Z-ETP Zinc Extreme Viton® 4.827" 3.649" 2.188" 1.750" 1-11/16-12 UN 1-11/16-12 UN 4.446" 4000 PSIG 0.718"
9DP20MFS20XMFS20-NI-V Electroless Nickel Viton 4.827" 3.649" 2.188" 1.750" 1-11/16-12 UN 1-11/16-12 UN 4.446" 4000 PSIG 0.718"
9DP20MFS20XMFS20-NI-AL Electroless Nickel AFLAS 4.827" 3.649" 2.188" 1.750" 1-11/16-12 UN 1-11/16-12 UN 4.446" 4000 PSIG 0.718"
9DP20MFS20XMFS20-NI-ETP Electroless Nickel Extreme Viton® 4.827" 3.649" 2.188" 1.750" 1-11/16-12 UN 1-11/16-12 UN 4.446" 4000 PSIG 0.718"
9DP24MFS24XMFS24-NI-V Electroless Nickel Viton 5.645" 4.370" 2.375" 2.125" 2-12 UN 2-12 UN 5.116" 4000 PSIG 0.844"
9DP24MFS24XMFS24-NI-AL Electroless Nickel AFLAS 5.645" 4.370" 2.375" 2.125" 2-12 UN 2-12 UN 5.116" 4000 PSIG 0.844"
9DP24MFS24XMFS24-NI-ETP Electroless Nickel Extreme Viton® 5.645" 4.370" 2.375" 2.125" 2-12 UN 2-12 UN 5.116" 4000 PSIG 0.844"
