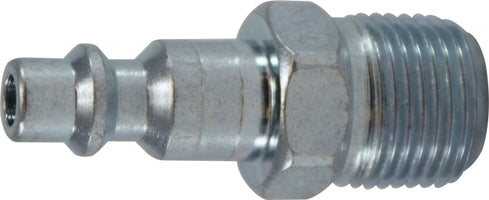

99816 by Midland | Industrial Interchange Pneumatic Plug | 1/2" Male Pipe | 1/2" Body Size | Steel
Midland Industries
Industrial Interchange Pneumatic Coupler - Steel
Industry standard design for compressed air, water, grease, paint, limited vacuum and limited gases.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
| Couplers | Plugs | ||||
|---|---|---|---|---|---|
Steel Female Coupler |
Steel Female Plug |
||||
| Part Number | Thread Size | Body Size | Part Number | Thread Size | Body Size |
| - | - | - | 28533 (28-533) |
1/8" | 1/4" |
| 28540S (28-540S) |
1/4" | 1/4" | 28534 (28-534) |
1/4" | 1/4" |
| 28541S (28-541S) |
3/8" | 1/4" | 28535 (28-535) |
3/8" | 1/4" |
| 28533 (28-533) |
1/8" | 1/4" | - | - | - |
| 98810 (98-810) |
1/4" | 3/8" | 98801 (98-801) |
1/4" | 3/8" |
| 98811 (98-811) |
3/8" | 3/8" | 98802 (98-802) |
3/8" | 3/8" |
| 98812 (98-812) |
3/8" | 1/2" | - | - | - |
| 99812 (99-812) |
1/2" | 1/2" | 99803 (99-803) |
1/2" | 1/2" |
| 99813 (99-813) |
3/4" | 1/2" | 99804 (99-804) |
3/4" | 1/2" |
Steel Male Coupler |
Steel Male Plug |
||||
|---|---|---|---|---|---|
| Part Number | Thread Size | Body Size | Part Number | Thread Size | Body Size |
| - | - | - | 28545 (28-545) |
1/8" | 1/4" |
| 28552S (28-552S) |
1/4" | 1/4" | 28546 (28-546) |
1/4" | 1/4" |
| 28553S (28-553S) |
3/8" | 1/4" | 28547 (28-547) |
3/8" | 1/4" |
| 98823 (98-823) |
1/4" | 3/8" | 98814 (98-814) |
1/4" | 3/8" |
| 98824 (98-824) |
3/8" | 3/8" | 98815 (98-815) |
3/8" | 3/8" |
| 98825 (98-825) |
1/2" | 3/8" | - | - | - |
| 99825 (99-825) |
1/2" | 1/2" | 99816 (99-816) |
1/2" | 1/2" |
| 99826 (99-826) |
3/4" | 1/2" | 99817 (99-817) |
3/4" | 1/2" |
Steel Hose Barb Coupler |
Steel Hose Barb Plug |
||||
|---|---|---|---|---|---|
| Part Number | Thread Size | Body Size | Part Number | Thread Size | Body Size |
| 28562S (28-562S) |
1/4" | 1/4" | 28557 (28-557) |
1/4" | 1/4" |
| 28564S (28-564S) |
3/8" | 1/4" | 28559 (28-559) |
3/8" | 1/4" |
| 98840 (98-840) |
1/4" | 3/8" | - | - | - |
| 98841 (98-841) |
3/8" | 3/8" | 98828 (98-828) |
3/8" | 3/8" |
| 99841 (99-841) |
3/8" | 1/2" | 99828 (99-828) |
3/8" | 1/2" |
| 99843 (99-843) |
1/2" | 1/2" | 99830 (99-830) |
1/2" | 1/2" |
Steel Push-On Coupler |
Steel Push-On Plug |
||||
|---|---|---|---|---|---|
| Part Number | Thread Size | Body Size | Part Number | Thread Size | Body Size |
| 28565S (28-565S) |
1/4" | 1/4" | 28558 (28-558) |
1/4" | 1/4" |
| 28566S (28-566S) |
3/8" | 1/4" | 28561 (28-561) |
3/8" | 1/4" |
| 98842 (98-842) |
3/8" | 3/8" | 98830 (98-830) |
3/8" | 3/8" |
Steel Male Swivel Plug |
|||||
|---|---|---|---|---|---|
| Part Number | Thread Size | Body Size | Part Number | Thread Size | Body Size |
| - | - | - | 320065 (320-065) |
1/4" | 1/4" |
| - | - | - | - | - | - |
| - | - | - | - | - | - |
