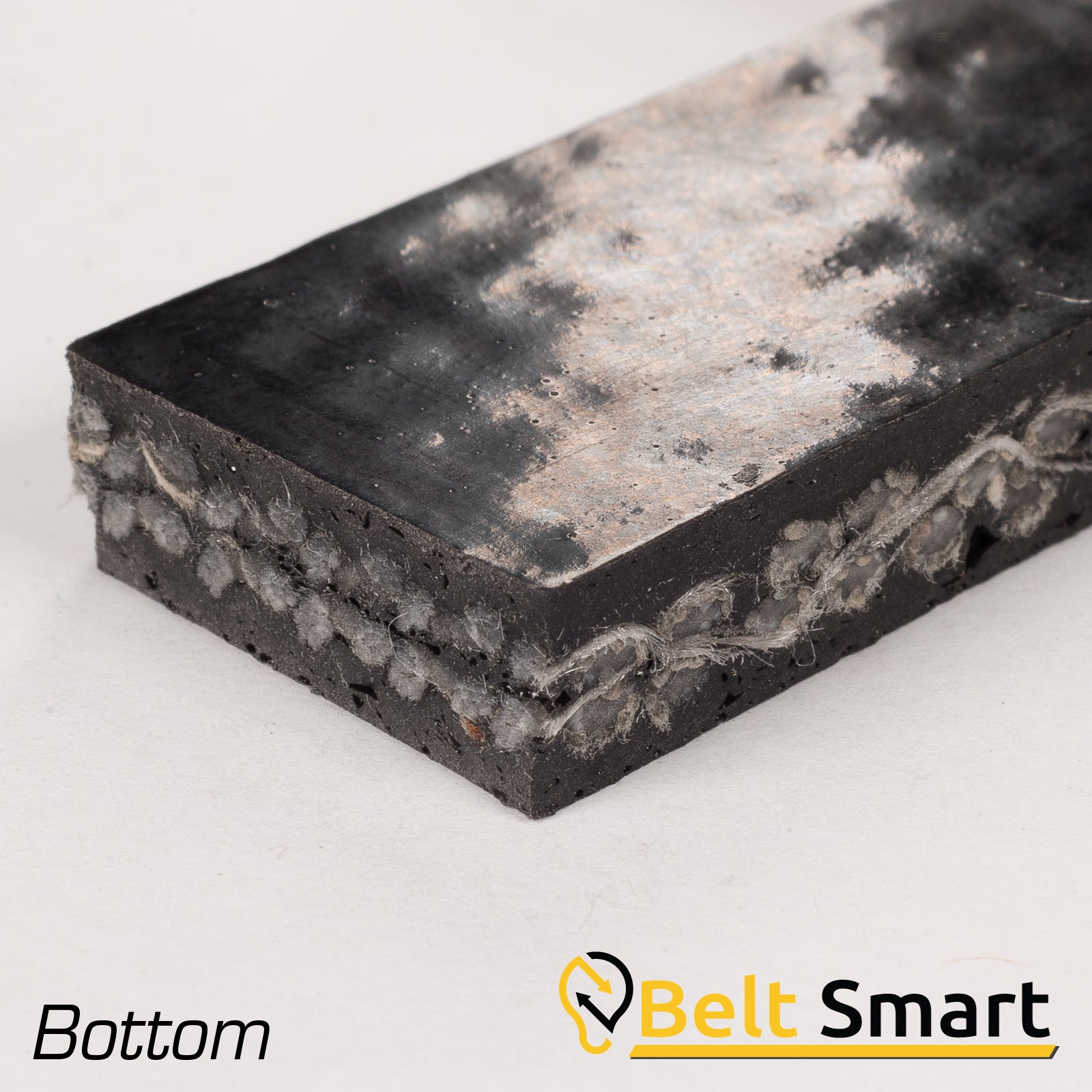

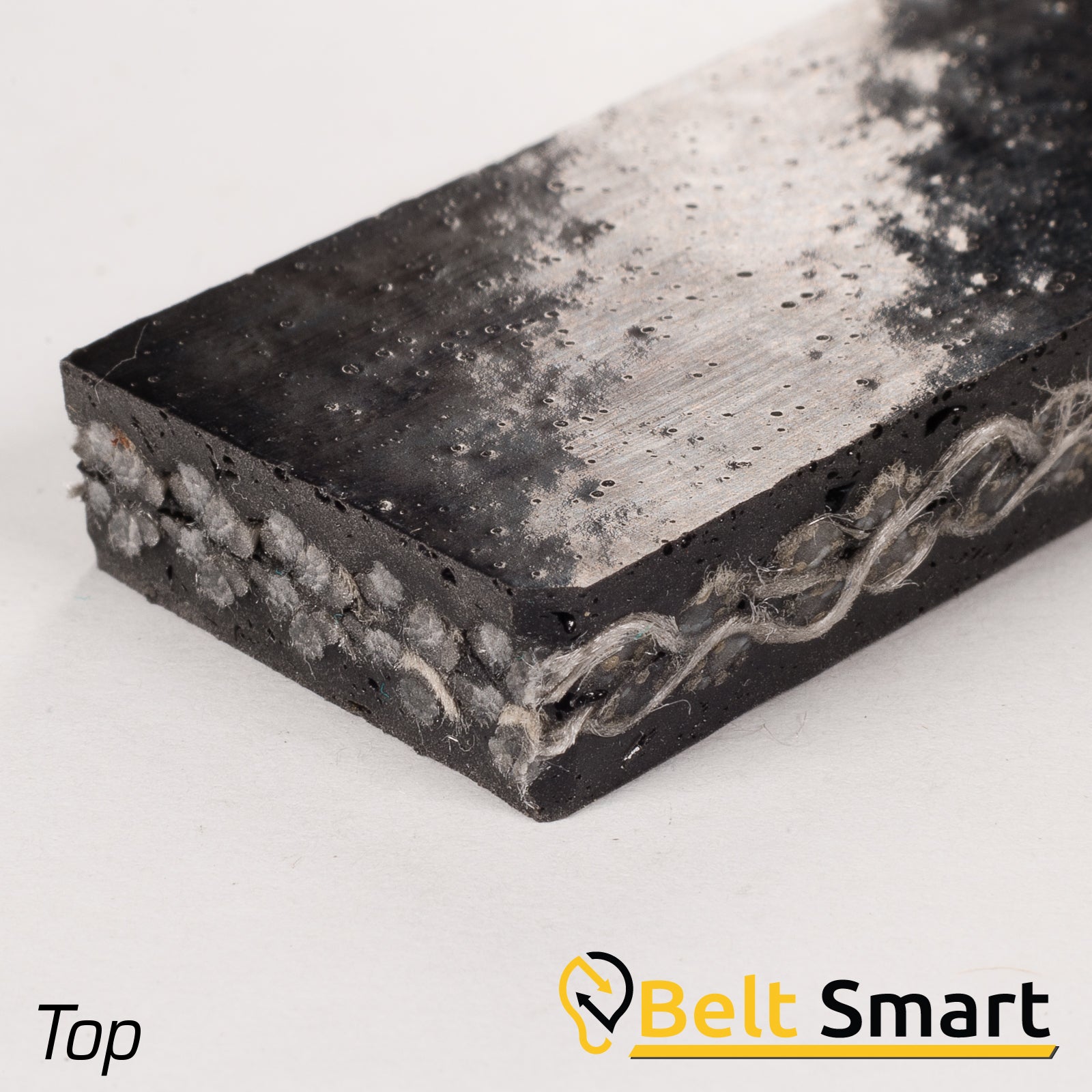

BS096 - #96 Beltservice PVC - 200 Black C x C SC/FR Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Feed Grain Heavy Duty Package Bulk Product
Features:
Problem free, high performance elevator belt popular in the feed and grain industries. Also popular as heavy duty package and bulk product conveyor belt.

	PVC - 200 Black C x C SC/FR Pt No.: 96	PVC - 200 Black C x Brushed Pt No.: 97	PVC - 200 Black FS x Brushed FR Pt No.: 98
Thickness	15/64"	13/64"	3/16"
Covers	C x C	C x FS	FS x FS
Safe Work Load PIW Conveyor	200 lbs.
Safe Work Load PIW Elevator Allowable	200 lbs.	NR	NR
Safe Work Load PIW Elevator Preferred	185 lbs.	NR	NR
Max Bucket Projection Grain	6"	NR	NR
Max Bucket Projection Industrial	6"	NR	NR
Min. Pulley Diameter Conveyor / Elevator	6" / 8"	6" / NR	6" / NR
Temperature Range	0 deg. F / 180 deg. F
Approx. Weight Lbs. Per Inch Width	.125	.105	.098
Clipper Lace	#4 1/2	#4 1/2	#4 1/2
Alligator Lace	#27	#25	#25
Alligator Staple / Flexco SR	#187/R5 #375 Hinged	#310/R5	R5 #550 Hinged
