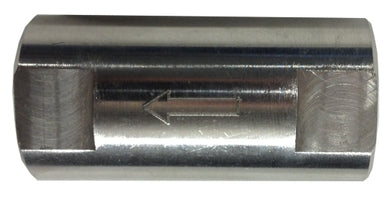

949451 by Midland | Spring Check Valve | 1/4" Female Pipe x 1/4" Female Pipe | 316 Stainless Steel
Midland Industries
Spring Check Valve - Female Pipe x Female Pipe - 316 Stainless Steel
Working Pressure: 1500 PSI (PN100)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.68 |
| 40–79 | $34.08 |
| 80+ | $30.07 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
| Number | Part | Material | QTY |
|---|---|---|---|
| 1 | Body | 316 Stainless Steel | 1 |
| 2 | Ring | Rubber | 1 |
| 3 | Spring | 304 Stainless Steel | 1 |
| 4 | Cap | CF8M | 1 |
| 5 | Spool | 304/316 Stainless Steel | 1 |
| 6 | Spring Ring | 304 Stainless Steel | 1 |
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Size | L | C | D | B | E | Weight lbs. |
| 949451 (949-451) |
1/4" | 2.165" | 0.217" | 0.748" | 0.699" | 0.394" | 0.19 |
| 949452 (949-452) |
3/8" | 2.165" | 0.295" | 0.866" | 0.787" | 0.394" | 0.21 |
| 949453 (949-453) |
1/2" | 2.165" | 0.413" | 1.063" | 0.945" | 0.472" | 0.31 |
| 949454 (949-454) |
3/4" | 2.677" | 0.591" | 1.417" | 1.26" | 0.472" | 0.71 |
| 949455 (949-455) |
1" | 3.268" | 0.787" | 1.693" | 1.496" | 0.591" | 1.14 |
