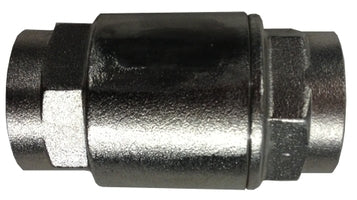

949443 by Midland | Two-Piece Barrel Type Spring Check Valve | 1/2" Female NPT x 1/2" Female NPT | Stainless Steel
Midland Industries
Two-Piece Barrel Type Spring Check Valve - Female NPT x Female NPT - Stainless Steel
Working Pressure: 300 PSI (PN20)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $41.70 |
| 40–79 | $37.71 |
| 80+ | $33.27 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
| Number | Part | Material | QTY |
|---|---|---|---|
| 1 | Body | CF8M/CF8 | 1 |
| 2 | Bolt | 304 Stainless Steel | 1 |
| 3 | Seat | NBR | 1 |
| 4 | Disc | 304 Stainless Steel | 1 |
| 5 | Spring | 316/304 Stainless Steel | 1 |
| 6 | Gasket | PTFE | 1 |
| 7 | Cap | CF8M/CF8 | 1 |
 |
||||
|---|---|---|---|---|
| Part Number | Size | L | D | Weight lbs. |
| 949441 (949-441) |
1/4" | 2.00" | 1.142" | 0.27 |
| 949442 (949-442) |
3/8" | 2.00" | 1.142" | 0.24 |
| 949443 (949-443) |
1/2" | 2.24" | 1.28" | 0.36 |
| 949444 (949-444) |
3/4" | 2.44" | 1.594" | 0.54 |
| 949445 (949-445) |
1" | 2.95" | 1.89" | 0.88 |
| 949446 (949-446) |
1-1/4" | 3.23" | 2.362" | 1.39 |
| 949447 (949-447) |
1-1/2" | 3.46" | 2.756" | 1.81 |
| 949448 (949-448) |
2" | 3.94" | 3.425" | 2.86 |
