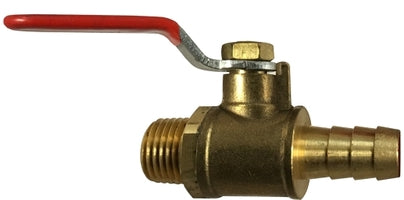

944128 by Midland | Forged Mini Ball Valve | 3/8" Hose Barb x 1/4" Male Pipe | Brass
Midland Industries
Forged Mini Ball Valve - Hose Barb x Male Pipe - Brass
200 WOG working pressure
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.98 |
| 40–79 | $12.64 |
| 80+ | $11.15 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
| Number | Part Name | Material | QTY |
|---|---|---|---|
| 1 | Nut | Steel | 1 |
| 2 | Handle | Steel | 1 |
| 3 | Cover | PVC | 1 |
| 4 | O-Ring | NBR | 2 |
| 5 | Stem | Brass | 1 |
| 6 | Body | Brass | 1 |
| 7 | Seat | Teflon | 2 |
| 8 | Ball Disc | Brass | 1 |
| 9 | End Plug | Brass | 1 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Size | A | B | C | D |
| 944132 (944-132) |
1/4" x 1/8" | 2.05" | 2.91" | 0.73" | 1.51" |
| 944138 (944-138) |
1/4" x 1/4" | 2.08" | 2.98" | 0.73" | 1.51" |
| 944128 (944-128) |
3/8" x 1/4" | 2.08" | 3.04" | 0.73" | 1.51" |
| 944130 (944-130) |
3/8" x 3/8" | 2.12" | 3.06" | 0.73" | 1.51" |
| 944139 (944-139) |
1/2" x 1/2" | 2.15" | 3.19" | 0.73" | 1.51" |
