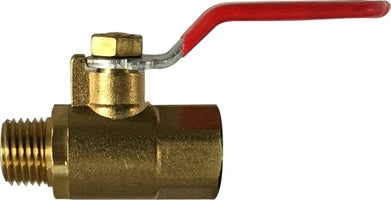

944106 by Midland | Forged Mini Ball Valve | 1/8" Female Pipe x 1/8" Male Pipe | Brass
Midland Industries
Forged Mini Ball Valve - Female Pipe x Male Pipe - Brass
200 WOG working pressure
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $19.39 |
| 40–79 | $17.54 |
| 80+ | $15.47 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
| Number | Part Name | Material | QTY |
|---|---|---|---|
| 1 | Nut | Steel | 1 |
| 2 | Handle | Steel | 1 |
| 3 | Cover | PVC | 1 |
| 4 | O-Ring | NBR | 2 |
| 5 | Stem | Brass | 1 |
| 6 | Body | Brass | 1 |
| 7 | Seat | Teflon | 2 |
| 8 | Ball Disc | Brass | 1 |
| 9 | End Plug | Brass | 1 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Size | A | B | C | D |
| 944106 (944-106) |
1/8" x 1/8" | 1.69" | 3.02" | 0.73" | 1.46" |
| 944100 (944-100) |
1/4" x 1/8" | 1.28" | 2.90" | 0.66" | 1.32" |
| 944101 (944-101) |
1/4" x 1/4" | 1.70" | 3.00" | 0.73" | 1.46" |
| 944103 (944-103) |
3/8" x 3/8" | 1.78" | 3.02" | 0.87" | 1.50" |
| 944102 (944-102) |
3/8" x 1/4" | 1.78" | 2.50" | 0.89" | 1.50" |
| 944104 (944-104) |
1/2" x 1/2" | - | - | - | - |
