940410LF by Midland | Lead Free Copper Press Ball Valve | 3" Press End x 3" Press End | Brass

940410LF by Midland | Lead Free Copper Press Ball Valve | 3" Press End x 3" Press End | Brass

Sale price$295.21

Midland Industries

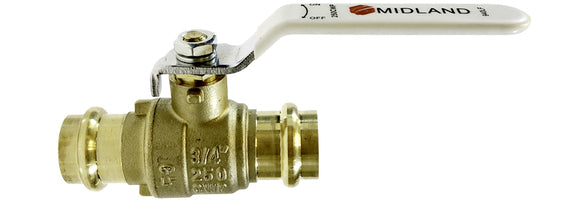

Lead Free Copper Press Ball Valve - Press End x Press End - Brass

Midland Series "940 LF" 2-Piece, Full Port, Lead Free, Copper, Press Ball Valves are designed for use in flameless, copper press piping systems.

Features a lead free brass body, adjustable packing gland and blowout proof stem with stem a single O-ring seal.

Comes with integral ASTM-B88 compliant press end connections that can be used with type K, L, M, hard copper tubing 1/2" - 4" utilizing industry standard tools.
Buy More, Save More!
Quantity Price Each
5–14 $277.50
15–29 $250.93
30+ $221.41
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Push-to-Connect
  • 3in Push-to-Connect
  • Some Ends Match
Material(s):
  • Lead Free Brass
Features:
  • Integral press end connections designed for hard and soft copper tubing
  • 250 WOG - 250 CWP (2-1/2" - 4")
  • One O-Ring design
  • Blow Out Proof Stem
  • Lead Free Lead Free Info (PDF)
Construction:
  • Full Port Stainless Steel ball
Specifications:
  • ISO-9001
  • UPC & NSF-61 Compliant
  • AB1953 & NSF-372 Compliant
About Midland Press Ball Valves:
  • Midland Copper Press Ball Valves are a heat-free method for joining copper tubes. Midland's press valve allows installers the confidence to know the joint is secure due to the leak-detection o-ring. During low pressure testing, if the joint is not pressed properly, the specialized o-ring will leak. This allows the installer to correct the press before the system is operational at higher pressures.
Part Name Material
Body Lead Free Brass
Seat PTFE
Ball Stainless Steel
Stem O-Ring NBR
Packing Nut Brass
Stem Brass (1/2" - 2")
Stainless Steel(2-1/2" - 4")
Lock Nut Ferrum /Zinc Plated
Lock Washer Ferrum /Zinc Plated
Packing PTFE
Handle Ferrum /Chrome Plated
Cap Lead Free Brass
Body O-Ring NBR
Press O-Ring EPDM
Part Number Size D L H W CV
940403LF
 1/2" 0.591" 3.46" 1.81" 3.15" 18.55
940404LF
 3/4" 0.748" 4.29" 2.09" 3.60" 29.76
940405LF
 1" 0.984" 4.29" 2.25" 3.92" 51.55
940406LF
 1-1/4" 1.259" 5.63" 2.52" 4.41" 84.42
940407LF
 1-1/2" 1.574" 5.63" 2.74" 5.35" 131.93
940408LF
 2" 1.941" 5.63" 3.03" 6.79" 200.35
940409LF
 2-1/2" 2.520" 7.76" 4.25" 7.46" 338.43
940410LF
 3" 2.874" 8.19" 4.58" 8.17" 445.44
940411LF
 4" 3.839" 9.25" 5.49" 9.88" 783.88

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
