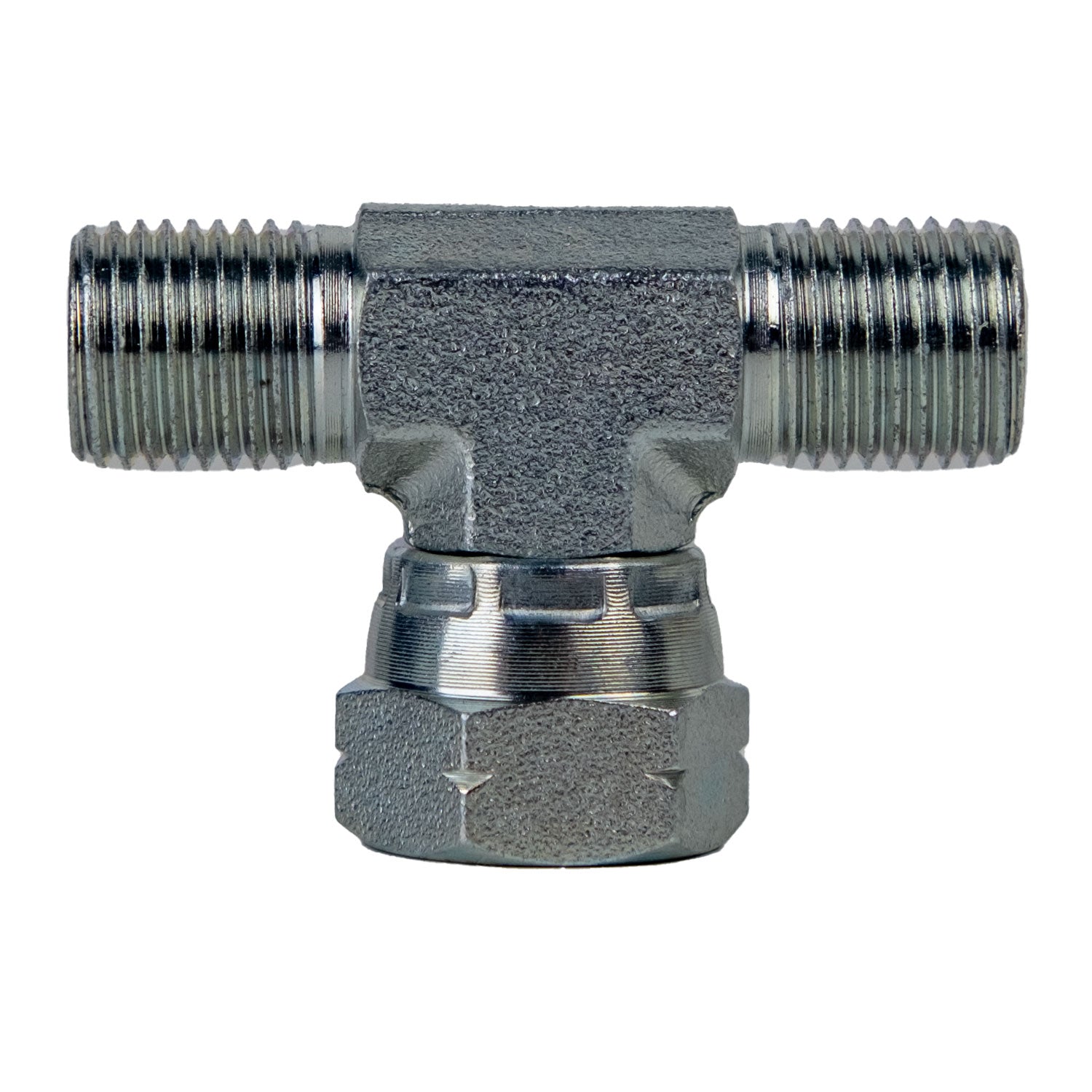

9342-12-12-12 by Midland | Hydraulic Adapter | Swivel Branch Tee | 3/4" Male BSPP x 3/4" Male BSPP x 3/4" Female BSPP Swivel Branch | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Male BSPP Size (1) |
Male BSPP Thread (1) |
Male BSPP Size (2) |
Male BSPP Thread (2) |
Female BSPP Size (3) |
Female BSPP Thread (3) |
| 9342-04-04-04 | 1/4" | 1/4-19 | 1/4" | 1/4-19 | 1/4" | 1/4-19 |
| 9342-06-06-06 | 3/8" | 3/8-19 | 3/8" | 3/8-19 | 3/8" | 3/8-19 |
| 9342-10-10-10 | 5/8" | 5/8-14 | 5/8" | 5/8-14 | 5/8" | 5/8-14 |
| 9342-12-12-12 | 3/4" | 3/4-14 | 3/4" | 3/4-14 | 3/4" | 3/4-14 |
| 9342-16-16-16 | 1" | 1-11 | 1" | 1-11 | 1" | 1-11 |
Additional Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
