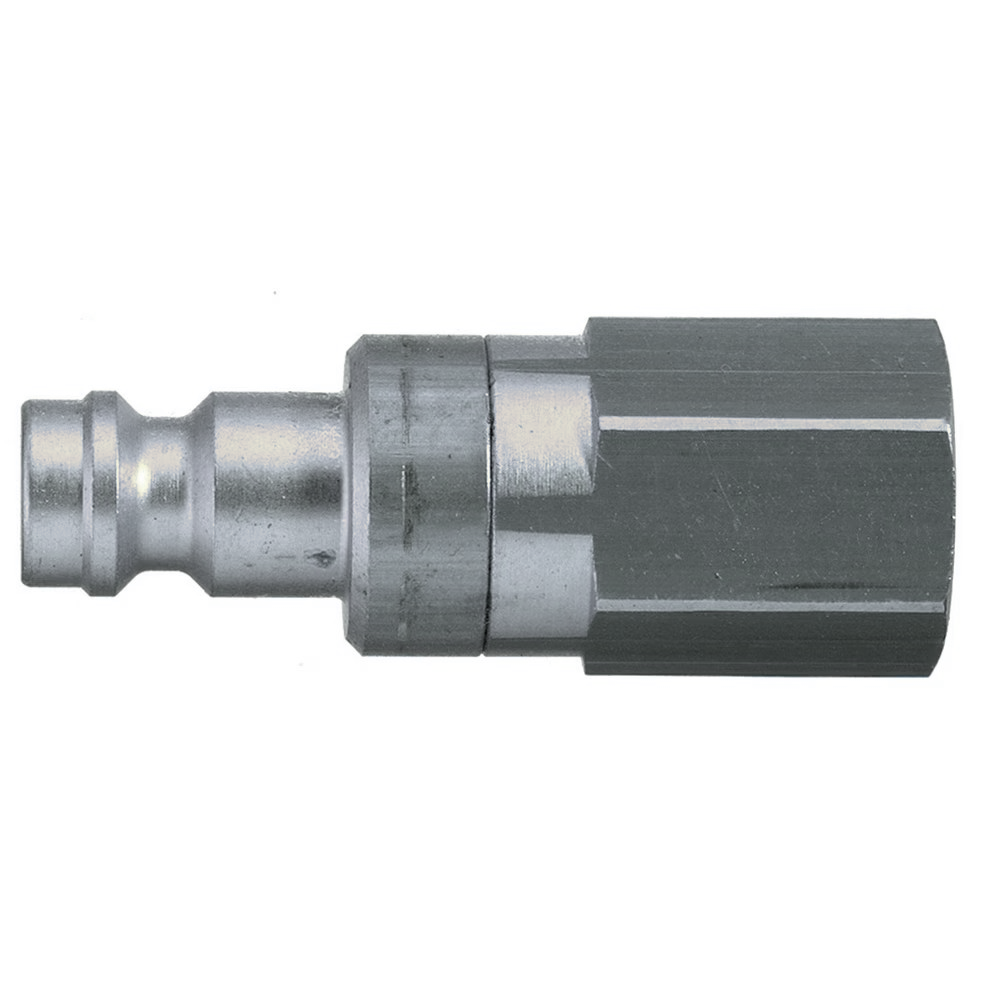

9286 21 10 by Parker | Legris Plug Quick Disconnect | 1/8" Female BSPP Thread | 14 mm Hex | 40 mm Length | Straight | Nickel-Plated Brass | Pack of 5

9286 21 10 by Parker | Legris Plug Quick Disconnect | 1/8" Female BSPP Thread | 14 mm Hex | 40 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$136.97

by Parker Hannifin
Series 21 - 9286 - Brass/Steel:Plug with valve, Female Thread

Package Quantity: 5 Units

In stock
Buy More, Save More!
Quantity Price Each
20–29 $128.75
30–59 $116.42
60+ $102.73
Discounts applied in cart/checkout.

Product Data:

Series:
  • 21 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Series 21 - Brass/Steel Series: Double Shut-Off Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 310 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 2.7 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 Kg
9286 21 10 1/8" 14 mm 40 mm 7 mm .057 Kg
9286 21 13 1/4" 17 mm 42 mm 7 mm .077 Kg
