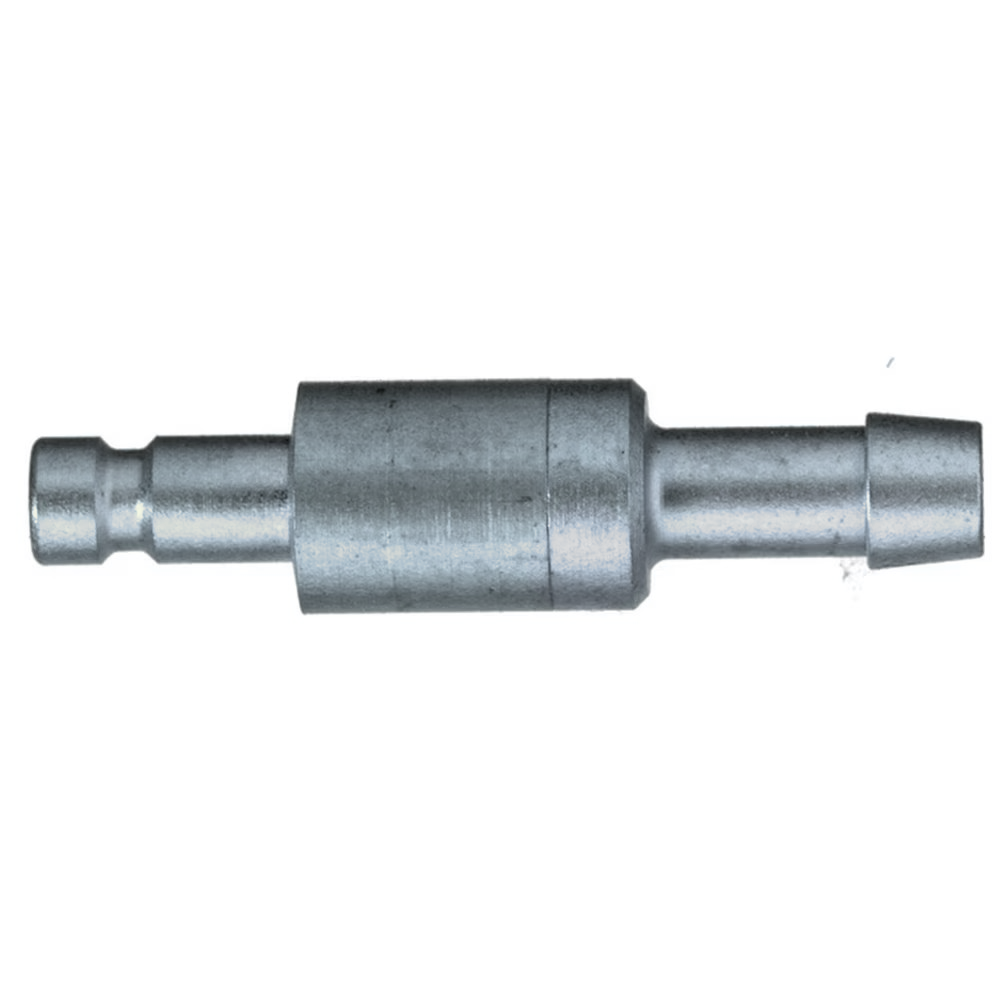

9285 20 05 by Parker | Legris Plug Quick Disconnect | 5 mm Hose Barb | 8 mm Hex | 36 mm Length | Straight | Nickel=Plated Brass | Pack of 5

9285 20 05 by Parker | Legris Plug Quick Disconnect | 5 mm Hose Barb | 8 mm Hex | 36 mm Length | Straight | Nickel=Plated Brass | Pack of 5

Sale price$79.24

by Parker Hannifin
Series 20 - Brass/Steel:9285 Plug with valve, Hose Barb

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $74.49
30–59 $67.35
60+ $59.43
Discounts applied in cart/checkout.

Product Data:

Series:
  • 20 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Series 20 - Brass/Steel Series: Double Shut-Off Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass
  • Plug: Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 130 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 1.2 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 Kg
9285 20 04 4 mm 8 mm 36 mm 13 mm .006 Kg
9285 20 05 5 mm 8 mm 36 mm 13 mm .007 Kg
