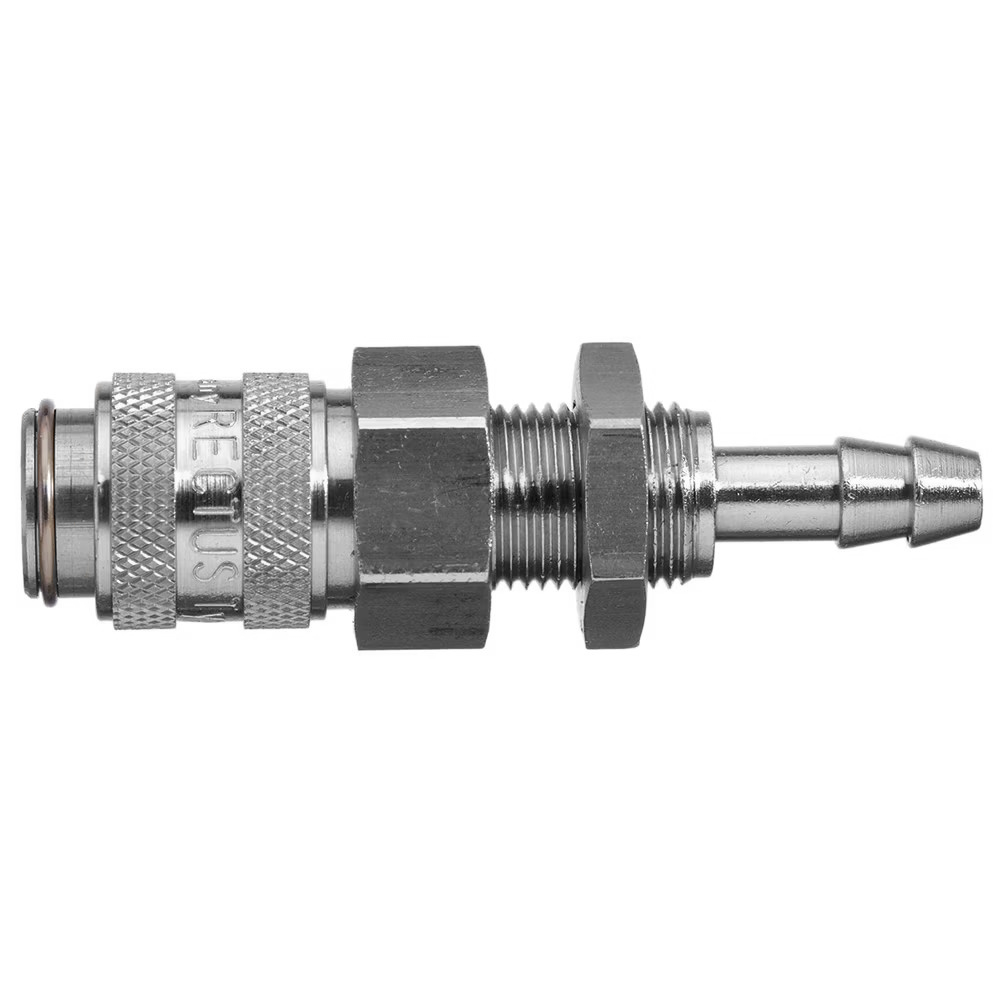

9226 21 06 by Parker | Legris Coupler Quick Disconnect w/ Panel Mount | 6 mm Hose Barb x M12x1 Metric Thread | 17 mm Hex | 17 mm Hex | 60 mm Length | Straight | Nickel-Plated Brass | Pack of 5

9226 21 06 by Parker | Legris Coupler Quick Disconnect w/ Panel Mount | 6 mm Hose Barb x M12x1 Metric Thread | 17 mm Hex | 17 mm Hex | 60 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$169.25

by Parker Hannifin
Series 21 - Brass/Steel:9226 Coupler with valve, Panel Mount with Hose Barb

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $159.10
30–59 $143.86
60+ $126.94
Discounts applied in cart/checkout.

Product Data:

Series:
  • 21 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Series 21 - Brass/Steel Series: Double Shut-Off Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants.
    1. Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 310 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 2.7 l/min. (Pressure dop 0.5 bar)
Part Number A L L1 L1 L1 L1 L1 L1 D Kg
9226 21 04 4 mm 14 mm 14 mm 3 mm M10x1 60 mm 17 mm 14 mm 16 mm .084 Kg
9226 21 06 6 mm 17 mm 17 mm 4 mm M12x1 60 mm 17 mm 14 mm 16 mm .104 Kg
