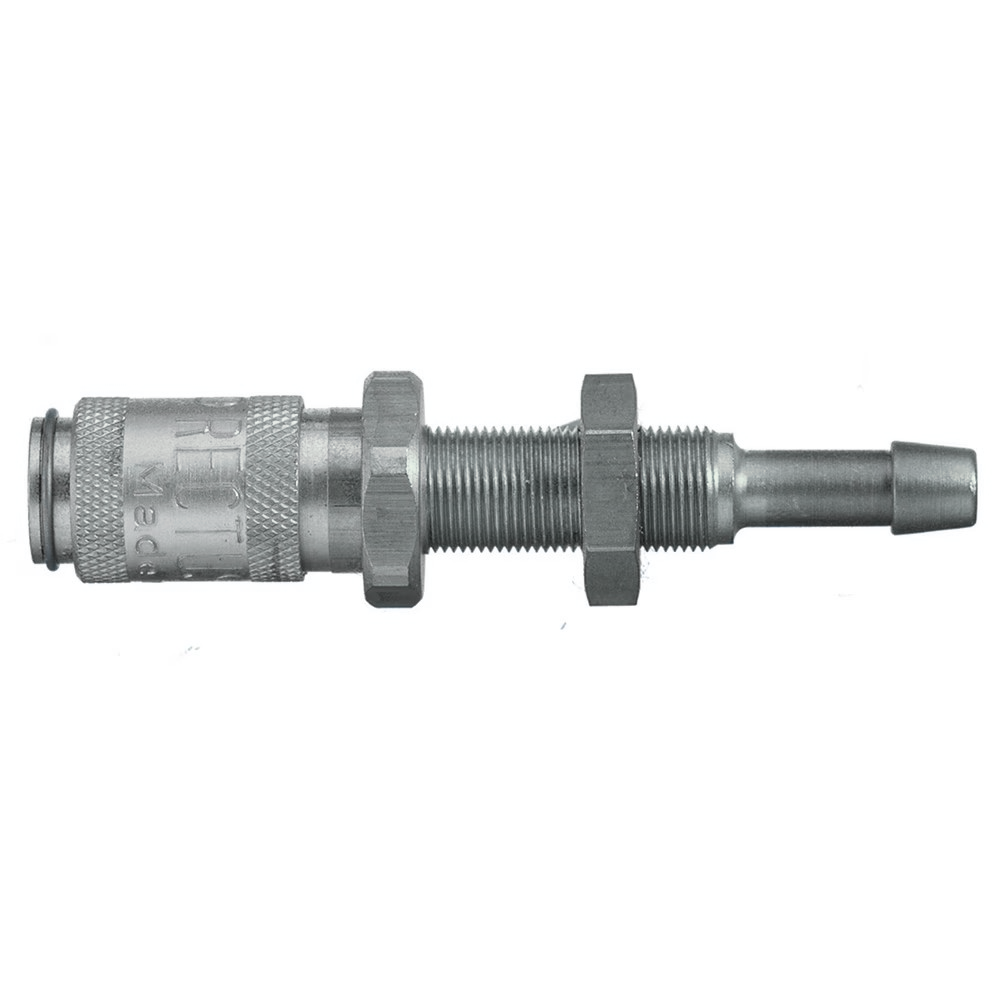

9226 20 03 by Parker | Legris Coupler Quick Disconnect w/ Panel Mount | 3 mm Hose Barb x M7x0.5 Metric Thread | 12 mm Hex | 11 mm Hex (1) | 51 mm Length | Straight | Nickel-Plated Brass | Pack of 5
by Parker Hannifin
Series 20 - Brass/Steel:9226 Coupler with valve, Panel Mount with Hose Barb
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $198.50 |
| 30–59 | $179.49 |
| 60+ | $158.38 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
| Series 20 - Brass/Steel Series: Double Shut-Off | Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media.
|
|---|---|
| Working Pressure: |
|
| Material: |
|
| Working Temperature: |
|
| Flow Rate Air: |
|
| Flow Rate Water: |
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | A | Hex | Hex 1 | B | G | L | L1 | L2 | D | Kg |
| 9226 20 03 | 3 mm | 12 mm | 11 mm | 3 mm | M7x0.5 | 51 mm | 13 mm | 17 mm | 10 mm | .015 Kg |
| 9226 20 04 | 4 mm | 12 mm | 11 mm | 3 mm | M7x0.5 | 51 mm | 13 mm | 17 mm | 10 mm | .015 Kg |
