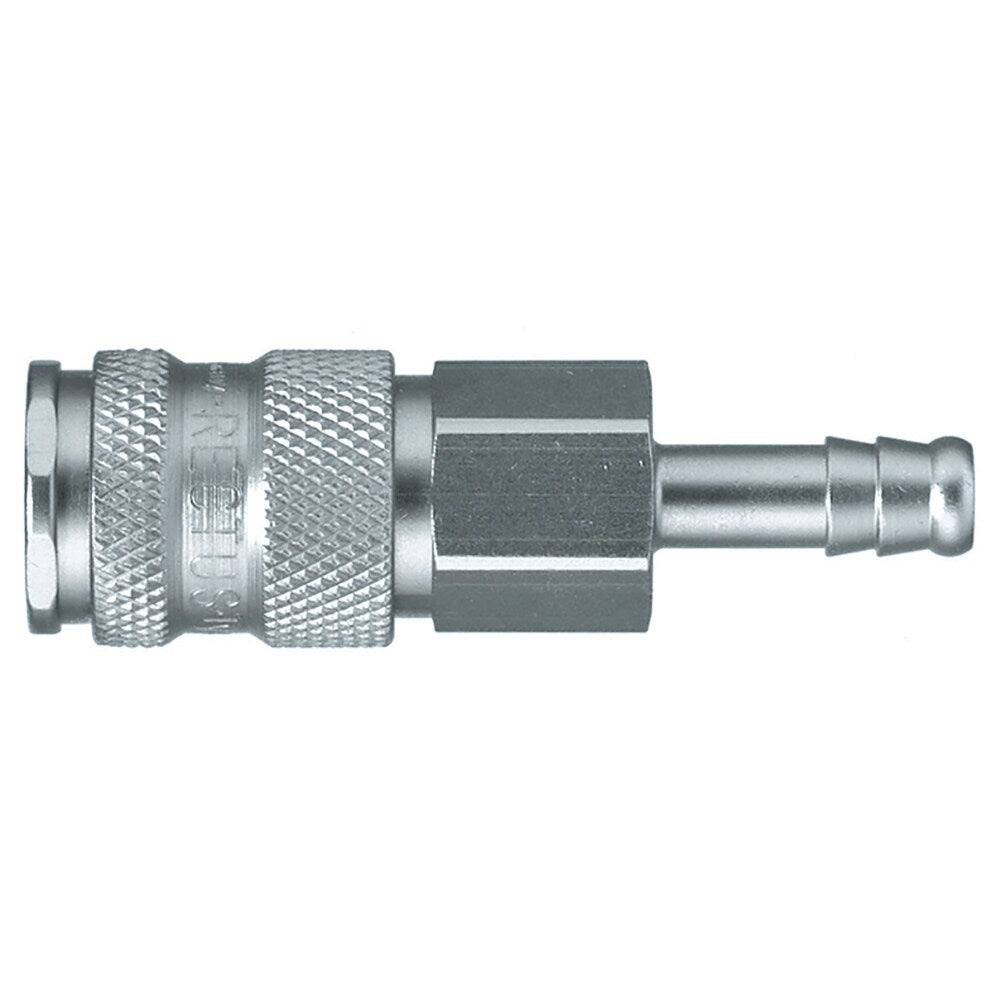

9223 25 06 by Parker | Legris Coupler Quick Disconnect | 6 mm Hose Barb | 19 mm Hex | 74 mm Length | Straight | Nickel-Plated Brass/Steel

9223 25 06 by Parker | Legris Coupler Quick Disconnect | 6 mm Hose Barb | 19 mm Hex | 74 mm Length | Straight | Nickel-Plated Brass/Steel

Sale price$41.62

by Parker Hannifin
Series 25 - Brass/Steel:9223 Coupler with valve, Hose Barb
Buy More, Save More!
Quantity Price Each
20–39 $39.12
40–79 $35.38
80+ $31.22
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series 25
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
  • Nickel-Plated Steel
Series 25 - Brass/Steel Series: Double Shut-Off Universal industrial coupling with European standard profile. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass/Steel
  • Plug: Zinc Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 710 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 7.1 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D
9223 25 06 6 mm 19 mm 74 mm 25 mm 23 mm
9223 25 08 8 mm 19 mm 74 mm 25 mm 23 mm
9223 25 10 10 mm 19 mm 74 mm 25 mm 23 mm
9223 25 13 13 mm 19 mm 74 mm 25 mm 23 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
