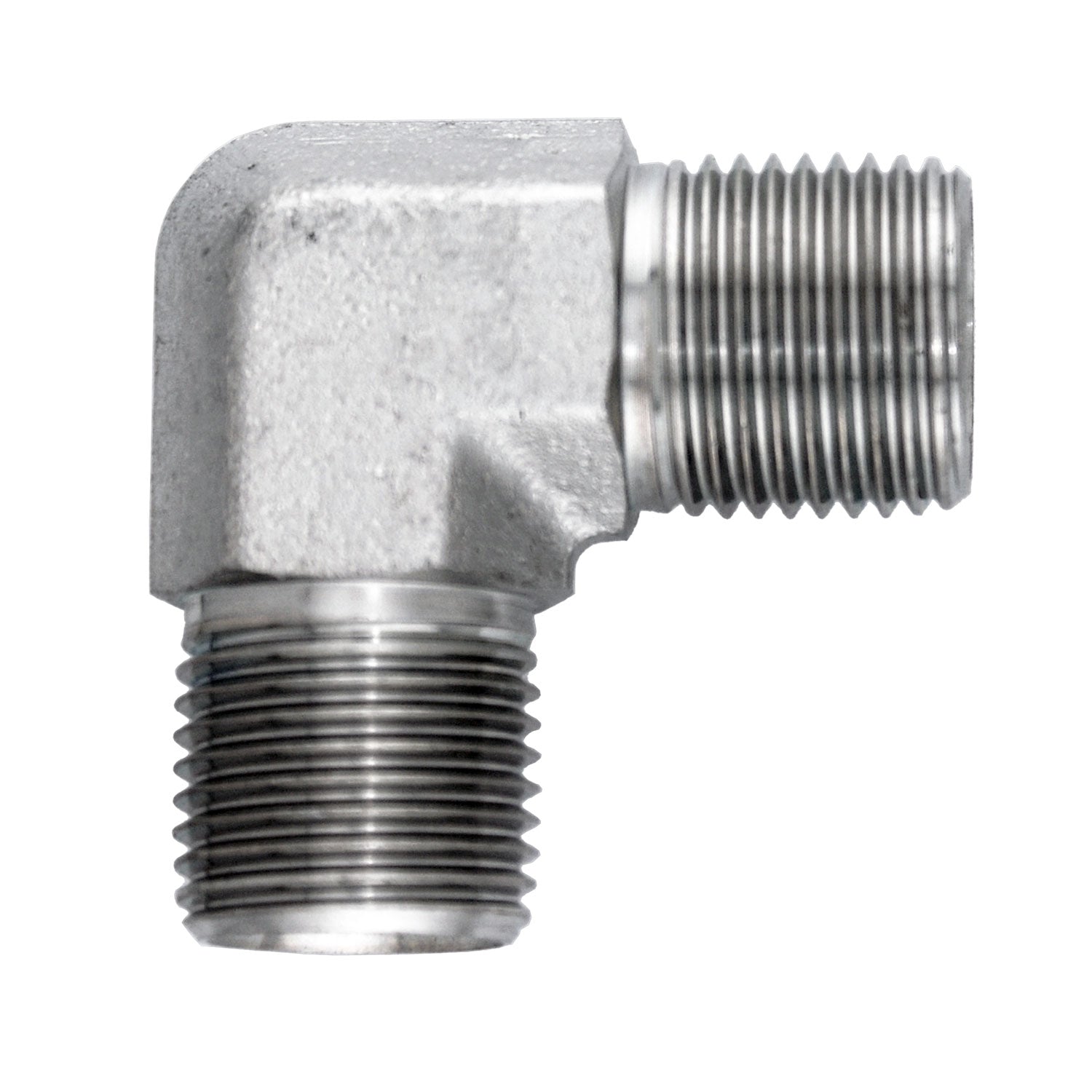

9222-04-04 by Midland | Hydraulic Adapter Union | 90° Elbow | 1/4" Male BSPP x 1/4" Male BSPP | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: Union - Male BSPP x Male BSPP - 90° Elbow - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.98 |
| 40–79 | $3.60 |
| 80+ | $3.17 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
| Part Number | Male BSPP (1) |
Male BSPP Thread (1) |
Male BSPP (2) |
Male BSPP Thread (2) |
|---|---|---|---|---|
| 9222-04-04 | 1/4" | 1/4-19 | 1/4" | 1/4-19 |
| 9222-06-04 | 3/8" | 3/8-19 | 1/4" | 1/4-19 |
| 9222-06-06 | 3/8" | 3/8-19 | 3/8" | 3/8-19 |
| 9222-08-06 | 1/2" | 1/2-14 | 3/8" | 3/8-19 |
| 9222-08-08 | 1/2" | 1/2-14 | 1/2" | 1/2-14 |
| 9222-12-08 | 3/4" | 3/4-14 | 1/2" | 1/2-14 |
| 9222-12-10 | 3/4" | 3/4-14 | 5/8" | 5/8-14 |
| 9222-12-12 | 3/4" | 3/4-14 | 3/4" | 3/4-14 |
| 9222-16-12 | 1" | 1-11 | 3/4" | 3/4-14 |
| 9222-16-16 | 1" | 1-11 | 1" | 1-11 |
