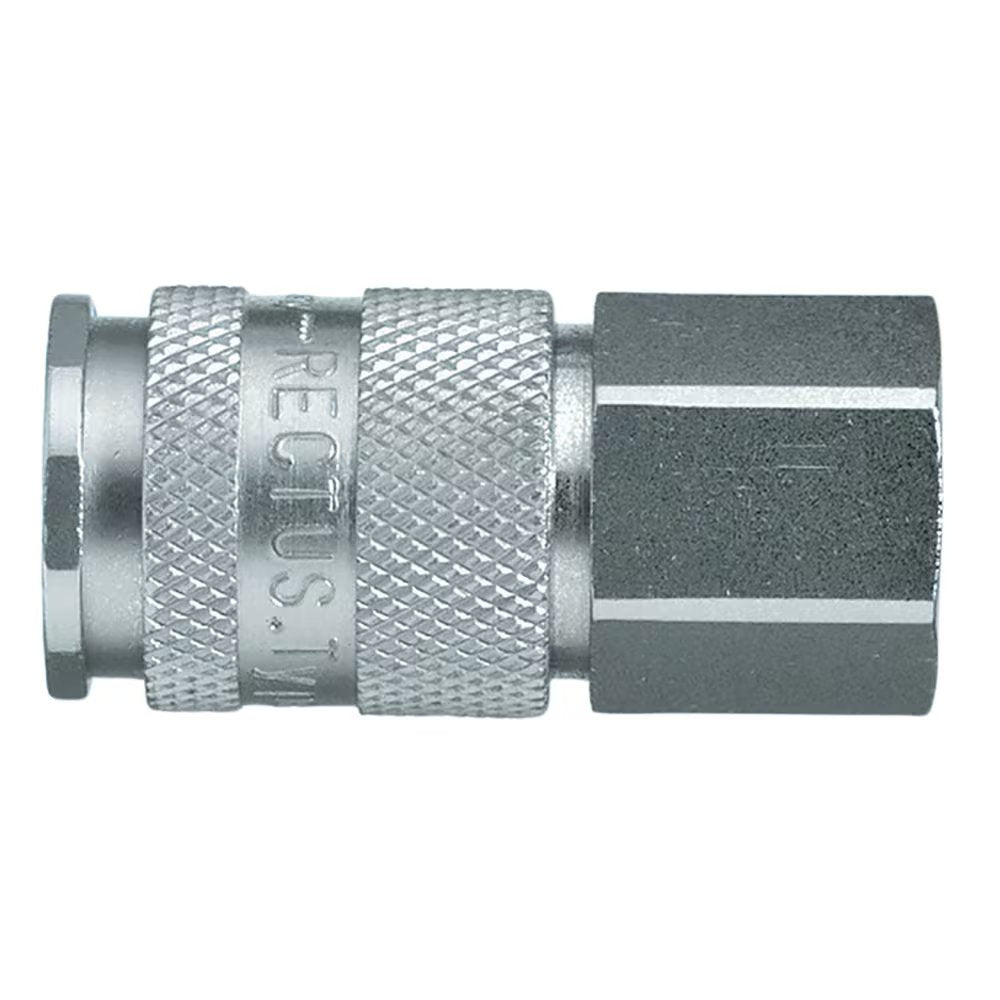

9214X27 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Female BSPP Thread | 24 mm Hex | 56 mm Length | Straight | Stainless Steel

9214X27 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Female BSPP Thread | 24 mm Hex | 56 mm Length | Straight | Stainless Steel

Sale price$265.86

by Parker Hannifin
Series 27 - Stainless Steel:9214X27 Coupler with valve, Female Thread
Buy More, Save More!
Quantity Price Each
5–14 $249.91
15–29 $225.98
30+ $199.40
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series 27
Shape:

Straight

Material(s):
  • Stainless Steel
Series 27 - Brass/Steel Series: Double Shut-Off 1/2" Universal industrial coupling with standard European profile for use with large pneumatic consumers. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design, extremely high flow and long service life even with the harshest use. The collar design minimizes damage to the valve body.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: AISI 303 / AISI 316L
  • Plug: AISI 303 / AISI 316L
  • Seals: FKM
Working Temperature:
  • -15°C up to +200°C (FKM)
Flow Rate Air:
  • 950 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 14 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D
9214X27 17 3/8" 24 mm 56 mm 11 mm 27 mm
