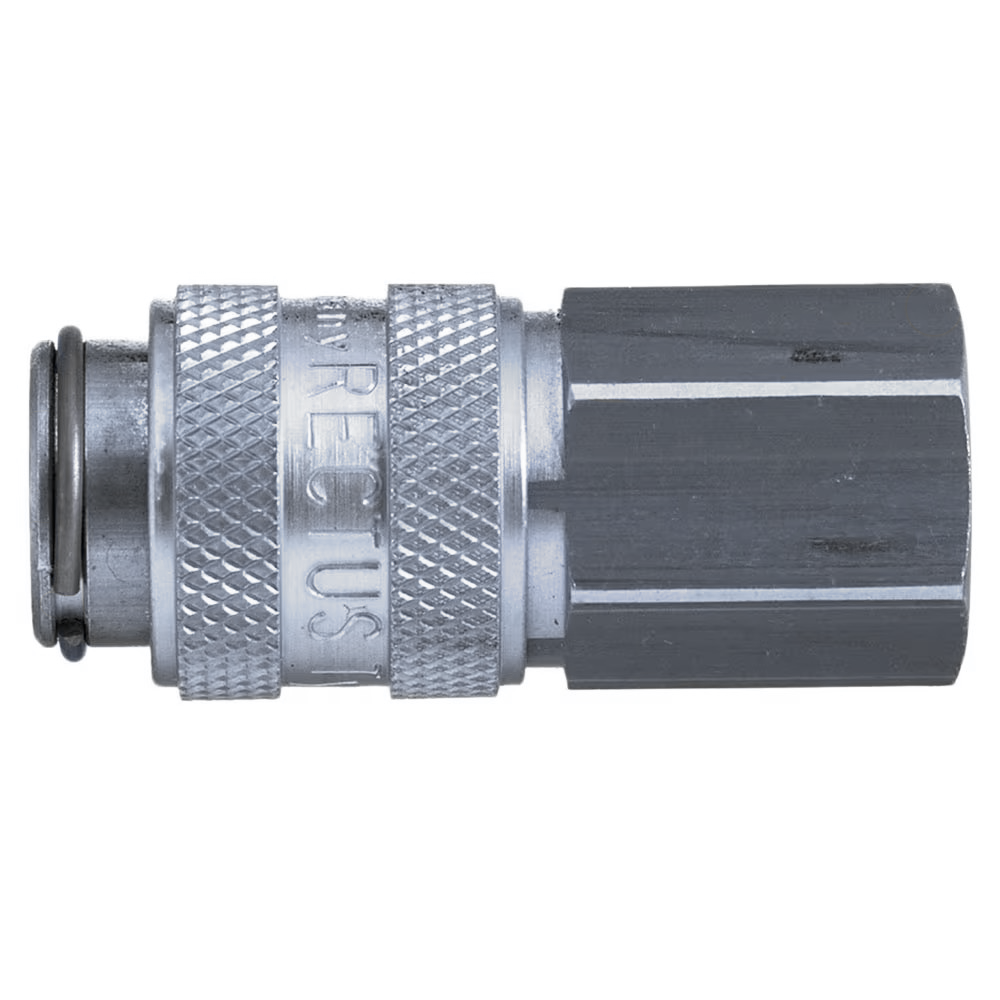

9214 21 13 by Parker | Legris Coupler Quick Disconnect | 1/4" Female BSPP Thread | 17 mm Hex | 38 mm Length | Straight | Nickel-Plated Brass | Pack of 5

9214 21 13 by Parker | Legris Coupler Quick Disconnect | 1/4" Female BSPP Thread | 17 mm Hex | 38 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$117.40

by Parker Hannifin
Series 21 - Brass/Steel:9214 Coupler with valve, Female Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $110.36
30–59 $99.79
60+ $88.05
Discounts applied in cart/checkout.

Product Data:

Series:
  • 21 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Series 21 - Brass/Steel Series: Double Shut-Off Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 310 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 2.7 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D Kg
9214 21 13 1/4" 17 mm 38 mm 9 mm 16 mm .086 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
