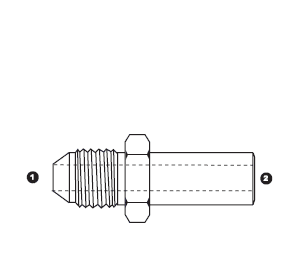

9200-24-35 by AdaptAll | -24 Male JIC x 35mm Metric Standpipe | Adapter | Carbon Steel

9200-24-35 by AdaptAll | -24 Male JIC x 35mm Metric Standpipe | Adapter | Carbon Steel

Sale price$70.70

Adaptall

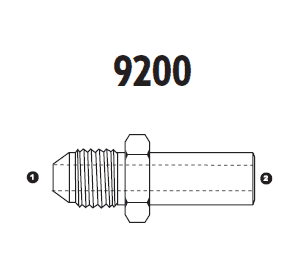

Male JIC x Metric Standpipe Adapter - Carbon Steel
Buy More, Save More!
Quantity Price Each
5–19 $66.46
20–59 $60.10
60+ $56.56
Discounts applied in cart/checkout.
Features
  • Forged Steel
  • Relevant Standard(s):
    • Side 1: SAE J514 / ISO 8434-2
    • Side 2: N/A
Part Number Side 1 Side 2 Dimensions Weight
Dash
Size		 Type Gender Size Thread Metric
Size		 Type Gender Size Thread L
(Length)		 CH
(Width)		 lbs.
9200-04-06 -04 JIC Male 1/4" 7/16 - 20 UNF 6mm DIN STANDPIPE Female 6mm 6mm 39.9mm 14mm 0.05 lbs
9200-04-08 -04 JIC Male 1/4" 7/16 - 20 UNF 8mm DIN STANDPIPE Female 8mm 8mm 40mm 14mm 0.05 lbs
9200-04-10 -04 JIC Male 1/4" 7/16 - 20 UNF 10mm DIN STANDPIPE Female 10mm 10mm 39.4mm 14mm 0.05 lbs
9200-05-12 -05 JIC Male 5/16" 1/2 - 20 UNF 12mm DIN STANDPIPE Female 12mm 12mm 41.6mm 16mm 0.05 lbs
9200-06-08 -06 JIC Male 3/8" 9/16 - 18 UNF 8mm DIN STANDPIPE Female 8mm 8mm 41mm 16mm 0.05 lbs
9200-06-10 -06 JIC Male 3/8" 9/16 - 18 UNF 10mm DIN STANDPIPE Female 10mm 10mm 42.1mm 16mm 0.06 lbs
9200-06-12 -06 JIC Male 3/8" 9/16 - 18 UNF 12mm DIN STANDPIPE Female 12mm 12mm 42.1mm 16mm 0.05 lbs
9200-06-14 -06 JIC Male 3/8" 9/16 - 18 UNF 14mm DIN STANDPIPE Female 14mm 14mm 42mm 16mm 0.05 lbs
9200-08-10 -08 JIC Male 1/2" 3/4 - 16 UNF 10mm DIN STANDPIPE Female 10mm 10mm 44.7mm 22mm 0.1 lbs
9200-08-12 -08 JIC Male 1/2" 3/4 - 16 UNF 12mm DIN STANDPIPE Female 12mm 12mm 46.9mm 22mm 0.11 lbs
9200-08-14 -08 JIC Male 1/2" 3/4 - 16 UNF 14mm DIN STANDPIPE Female 14mm 14mm 47.2mm 22mm 0.15 lbs
9200-08-15 -08 JIC Male 1/2" 3/4 - 16 UNF 15mm DIN STANDPIPE Female 15mm 15mm 47.5mm 22mm 0.15 lbs
9200-08-16 -08 JIC Male 1/2" 3/4 - 16 UNF 16mm DIN STANDPIPE Female 16mm 16mm 47.5mm 22mm 0.15 lbs
9200-10-16 -10 JIC Male 5/8" 7/8 - 14 UNF 16mm DIN STANDPIPE Female 16mm 16mm 55.5mm 27mm 0.2 lbs
9200-10-18 -10 JIC Male 5/8" 7/8 - 14 UNF 18mm DIN STANDPIPE Female 18mm 18mm 55.4mm 27mm 0.25 lbs
9200-10-20 -10 JIC Male 5/8" 7/8 - 14 UNF 20mm DIN STANDPIPE Female 20mm 20mm 59mm 27mm 0.25 lbs
9200-12-16 -12 JIC Male 3/4" 1-1/16 - 12 UNF 16mm DIN STANDPIPE Female 16mm 16mm 63.6mm 32mm 0.3 lbs
9200-12-18 -12 JIC Male 3/4" 1-1/16 - 12 UNF 18mm DIN STANDPIPE Female 18mm 18mm 64.7mm 32mm 0.32 lbs
9200-12-20 -12 JIC Male 3/4" 1-1/16 - 12 UNF 20mm DIN STANDPIPE Female 20mm 20mm 63.7mm 32mm 0.35 lbs
9200-12-22 -12 JIC Male 3/4" 1-1/16 - 12 UNF 22mm DIN STANDPIPE Female 22mm 22mm 64.8mm 32mm 0.38 lbs
9200-12-25 -12 JIC Male 3/4" 1-1/16 - 12 UNF 25mm DIN STANDPIPE Female 25mm 25mm 65mm 32mm 0.35 lbs
9200-16-25 -16 JIC Male 1" 1-5/16 - 12 UN 25mm DIN STANDPIPE Female 25mm 25mm 68.8mm 35mm 0.45 lbs
9200-16-28 -16 JIC Male 1" 1-5/16 - 12 UN 28mm DIN STANDPIPE Female 28mm 28mm 68.6mm 35mm 0.5 lbs
9200-16-30 -16 JIC Male 1" 1-5/16 - 12 UN 30mm DIN STANDPIPE Female 30mm 30mm 69.4mm 35mm 0.5 lbs
9200-20-28 -20 JIC Male 1-1/4" 1-5/8 - 12 UN 28mm DIN STANDPIPE Female 28mm 28mm 90.8mm 44.5mm 0.75 lbs
9200-20-35 -20 JIC Male 1-1/4" 1-5/8 - 12 UN 35mm DIN STANDPIPE Female 35mm 35mm 90.5mm 44.5mm 0.9 lbs
9200-20-38 -20 JIC Male 1-1/4" 1-5/8 - 12 UN 38mm DIN STANDPIPE Female 38mm 38mm 90.2mm 44.5mm 0.9 lbs
9200-24-35 -24 JIC Male 1-1/2" 1-7/8 - 12 UN 35mm DIN STANDPIPE Female 35mm 35mm 87.2mm 51mm 1.05 lbs
9200-24-38 -24 JIC Male 1-1/2" 1-7/8 - 12 UN 38mm DIN STANDPIPE Female 38mm 38mm 96mm 51mm 1.1 lbs
9200-24-42 -24 JIC Male 1-1/2" 1-7/8 - 12 UN 42mm DIN STANDPIPE Female 42mm 42mm 86.5mm 51mm 1.15 lbs

Dimensions shown here are for steel and stainless only.

Product Data:

Series:
  • 9200 Series
Shape:

Straight

Ends Configuration:
  • 1-1/2in Male JIC
  • 35mm Male DIN

Adaptall

Adaptall specializes in the conversion of hydraulic adapters and fittings, between International (“Metric”) and American (“Imperial”) thread types. These include British (BSPP, & BSPT), JIS, Kobelco, Komatsu, and Metric on the International side, as well as JIC, NPT, ORFS, and SAE ORB for Imperial thread types. Industries served include construction, mining / aggregates, pulp & paper, agriculture, manufacturing, industrial, marine, aerospace, military, OEM and more.
