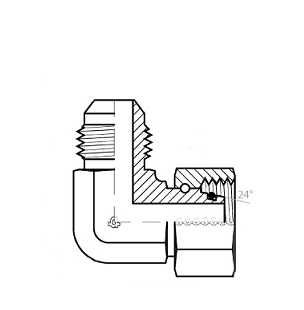

90 deg. Male JIC x Female Metric DIN/DKO (Swivel) Elbow Adapter - Carbon Steel
Buy More, Save More!
Quantity Price Each
10–39 $15.63
40–79 $14.14
80+ $12.47
Discounts applied in cart/checkout.

Product Data:

Series:
  • 9199 Series
Shape:

90 Degree

Ends Configuration:
  • 1/4in Male JIC
  • L06 Female DIN
Features
  • Relevant Standard(s):
    • Side 1: SAE J514 / ISO 8434-2
    • Side 2: ISO 8434-1 / DIN 2353
Part Number Side 1 Side 2 Dimensions Weight
Dash
Size		 Type Gender Size Thread Metric
Size		 Type Gender Size Thread L1
(Length)		 L2
(Length)		 CH1
(Width)		 CH2
(Width)		 lbs.
9199-04-L06-12 -04 JIC Male 1/4" 7/16 - 20 UNF L06 DIN TUBE Female L06 M12 X 1.5 28.8mm 26.9mm 14mm 14mm 0.11 lbs
9199-04-S06-14 -04 JIC Male 1/4" 7/16 - 20 UNF S06 DIN TUBE Female S06 M14 X 1.5 26.9mm 26.9mm 14mm 17mm 0.14 lbs
9199-06-L08-14 -06 JIC Male 3/8" 9/16 - 18 UNF L08 DIN TUBE Female L08 M14 X 1.5 27.5mm 27mm 14mm 17mm 0.13 lbs
9199-06-L10-16 -06 JIC Male 3/8" 9/16 - 18 UNF L10 DIN TUBE Female L10 M16 X 1.5 30mm 27mm 14mm 19mm 0.15 lbs
9199-06-S08-16 -06 JIC Male 3/8" 9/16 - 18 UNF S08 DIN TUBE Female S08 M16 X 1.5 27.2mm 27mm 14mm 19mm 0.14 lbs
9199-06-S10-18 -06 JIC Male 3/8" 9/16 - 18 UNF S10 DIN TUBE Female S10 M18 X 1.5 29.4mm 27mm 14mm 22mm 0.18 lbs
9199-08-L12-18 -08 JIC Male 1/2" 3/4 - 16 UNF L12 DIN TUBE Female L12 M18 X 1.5 31mm 31.3mm 19mm 22mm 0.25 lbs
9199-08-S12-20 -08 JIC Male 1/2" 3/4 - 16 UNF S12 DIN TUBE Female S12 M20 X 1.5 33.2mm 31.3mm 19mm 24mm 0.28 lbs
9199-10-L15-22 -10 JIC Male 5/8" 7/8 - 14 UNF L15 DIN TUBE Female L15 M22 X 1.5 34.3mm 36.8mm 22mm 27mm 0.4 lbs
9199-10-S16-24 -10 JIC Male 5/8" 7/8 - 14 UNF S16 DIN TUBE Female S16 M24 X 1.5 36.4mm 36.8mm 22mm 30mm 0.46 lbs
9199-12-L18-26 -12 JIC Male 3/4" 1-1/16 - 12 UNF L18 DIN TUBE Female L18 M26 X 1.5 37.8mm 42.2mm 27mm 32mm 0.63 lbs
9199-12-S20-30 -12 JIC Male 3/4" 1-1/16 - 12 UNF S20 DIN TUBE Female S20 M30 X 2.0 43.8mm 42.2mm 27mm 36mm 0.76 lbs
9199-16-L22-30 -16 JIC Male 1" 1-5/16 - 12 UN L22 DIN TUBE Female L22 M30 X 2.0 39.7mm 46mm 33mm 36mm 0.93 lbs
9199-16-L28-36 -16 JIC Male 1" 1-5/16 - 12 UN L28 DIN TUBE Female L28 M36 X 2.0 42.7mm 46mm 33mm 41mm 0.94 lbs
9199-16-S25-36 -16 JIC Male 1" 1-5/16 - 12 UN S25 DIN TUBE Female S25 M36 X 2.0 50mm 46mm 33mm 46mm 1.31 lbs
9199-20-L35-45 -20 JIC Male 1-1/4" 1-5/8 - 12 UN L35 DIN TUBE Female L35 M45 X 2.0 51.5mm 52mm 41mm 50mm 1.54 lbs
9199-20-S30-42 -20 JIC Male 1-1/4" 1-5/8 - 12 UN S30 DIN TUBE Female S30 M42 X 2.0 54.2mm 52.3mm 41mm 50mm 1.71 lbs
9199-24-L42-52 -24 JIC Male 1-1/2" 1-7/8 - 12 UN L42 DIN TUBE Female L42 M52 X 2.0 56mm 59mm 48mm 60mm 2.35 lbs

Dimensions shown here are for steel and stainless only.
