9197-10-L15-22 by AdaptAll | -10 Braze Male JIC x L15 Metric Female DIN/DKO Swivel | Carbon Steel

9197-10-L15-22 by AdaptAll | -10 Braze Male JIC x L15 Metric Female DIN/DKO Swivel | Carbon Steel

Sale price$20.97

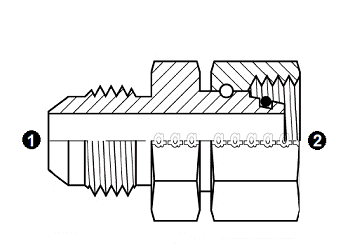

Adaptall Braze Male JIC x Metric Female DIN/DKO (Swivel) - Carbon Steel

In stock
Buy More, Save More!
Quantity Price Each
10–39 $19.71
40–79 $17.82
80+ $15.73
Discounts applied in cart/checkout.
Features
  • Relevant Standard(s):
    • Side 1: SAE J514 / ISO 8434-2
    • Side 2: ISO 8434-1 / DIN 2353
Part Number Side 1 Side 2 Dimensions Weight
Dash
Size		 Type Gender Size Thread Dash
Size		 Type Gender Size Thread L1
(Length)		 CH1
(Width)		 CH2
(Width)		 lbs.
9197-04-L06-12 -04 JIC Male 1/4" 7/16 - 20 UNF L06 DIN TUBE Female L06 M12 X 1.5 39.7mm 14mm 14mm 0.07 lbs
9197-04-S06-14 -04 JIC Male 1/4" 7/16 - 20 UNF S06 DIN TUBE Female S06 M14 X 1.5 43.4mm 14mm 17mm 0.08 lbs
9197-06-L08-14 -06 JIC Male 3/8" 9/16 - 18 UNF L08 DIN TUBE Female L08 M14 X 1.5 40.8mm 17mm 17mm 0.11 lbs
9197-06-L10-16 -06 JIC Male 3/8" 9/16 - 18 UNF L10 DIN TUBE Female L10 M16 X 1.5 42.8mm 17mm 19mm 0.12 lbs
9197-06-S08-16 -06 JIC Male 3/8" 9/16 - 18 UNF S08 DIN TUBE Female S08 M16 X 1.5 44.1mm 17mm 19mm 0.12 lbs
9197-06-S10-18 -06 JIC Male 3/8" 9/16 - 18 UNF S10 DIN TUBE Female S10 M18 X 1.5 45.1mm 17mm 22mm 0.16 lbs
9197-08-L12-18 -08 JIC Male 1/2" 3/4 - 16 UNF L12 DIN TUBE Female L12 M18 X 1.5 45.3mm 19mm 22mm 0.18 lbs
9197-08-S12-20 -08 JIC Male 1/2" 3/4 - 16 UNF S12 DIN TUBE Female S12 M20 X 1.5 47.9mm 19mm 24mm 0.2 lbs
9197-10-L15-22 -10 JIC Male 5/8" 7/8 - 14 UNF L15 DIN TUBE Female L15 M22 X 1.5 52mm 24mm 27mm 0.29 lbs
9197-10-S16-24 -10 JIC Male 5/8" 7/8 - 14 UNF S16 DIN TUBE Female S16 M24 X 1.5 52.1mm 24mm 30mm 0.36 lbs
9197-12-L18-26 -12 JIC Male 3/4" 1-1/16 - 12 UNF L18 DIN TUBE Female L18 M26 X 1.5 56.5mm 27mm 32mm 0.43 lbs
9197-12-S20-30 -12 JIC Male 3/4" 1-1/16 - 12 UNF S20 DIN TUBE Female S20 M30 X 2.0 64.1mm 27mm 36mm 0.58 lbs
9197-16-L22-30 -16 JIC Male 1" 1-5/16 - 12 UN L22 DIN TUBE Female L22 M30 X 2.0 56.5mm 36mm 36mm 0.62 lbs
9197-16-L28-36 -16 JIC Male 1" 1-5/16 - 12 UN L28 DIN TUBE Female L28 M36 X 2.0 60.7mm 36mm 41mm 0.64 lbs
9197-16-S25-36 -16 JIC Male 1" 1-5/16 - 12 UN S25 DIN TUBE Female S25 M36 X 2.0 67.9mm 36mm 46mm 0.98 lbs
9197-20-L35-45 -20 JIC Male 1-1/4" 1-5/8 - 12 UN L35 DIN TUBE Female L35 M45 X 2.0 67mm 46mm 50mm 1.09 lbs
9197-20-S30-42 -20 JIC Male 1-1/4" 1-5/8 - 12 UN S30 DIN TUBE Female S30 M42 X 2.0 66.9mm 46mm 50mm 1.16 lbs
9197-24-L42-52 -24 JIC Male 1-1/2" 1-7/8 - 12 UN L42 DIN TUBE Female L42 M52 X 2.0 71.4mm 50mm 60mm 1.51 lbs
9197-24-S38-52 -24 JIC Male 1-1/2" 1-7/8 - 12 UN S38 DIN TUBE Female S38 M52 X 2.0 73.1mm 50mm 60mm 1.5 lbs

Dimensions shown here are for steel and stainless only.

Product Data:

Series:
  • 9197 Series
Shape:

Straight

Ends Configuration:
  • 5/8in Male JIC
  • L15 Female DIN

Adaptall

Adaptall specializes in the conversion of hydraulic adapters and fittings, between International (“Metric”) and American (“Imperial”) thread types. These include British (BSPP, & BSPT), JIS, Kobelco, Komatsu, and Metric on the International side, as well as JIC, NPT, ORFS, and SAE ORB for Imperial thread types. Industries served include construction, mining / aggregates, pulp & paper, agriculture, manufacturing, industrial, marine, aerospace, military, OEM and more.
