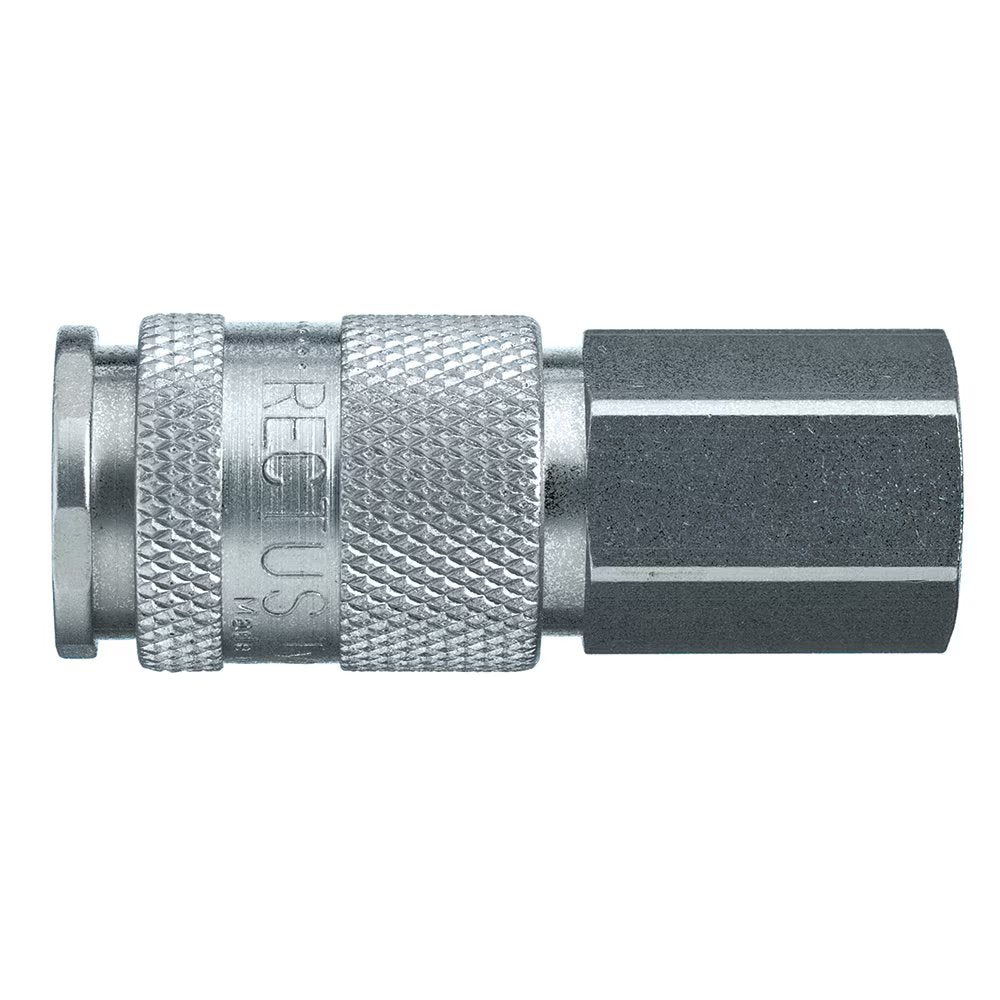

9114 18 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Female BSPP | 19 mm Hex | 57 mm Length | Straight | Nickel-Plated Brass | Pack of 5

9114 18 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Female BSPP | 19 mm Hex | 57 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$246.31

by Parker Hannifin
Series 18 - Brass/Steel:9114 Coupler with valve, Female Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $231.53
30–59 $209.36
60+ $184.73
Discounts applied in cart/checkout.

Product Data:

Series:
  • 18 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
  • Nickel-Plated Steel
Series 18 - Brass/Steel Series: Single Shut-Off Robust industrial coupling according to ISO 6150 C. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The steel sleeve counters oscillating forces. System has limited use for liquids (steel sleeve/zinc die cast valve). The high insertion depth guarantees by an optimized plug guidance.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass / steel
  • Plug: Nickel-Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 970 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 12.7 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D
9114 18 17 3/8" 19 mm 57 mm 9 mm 23 mm
