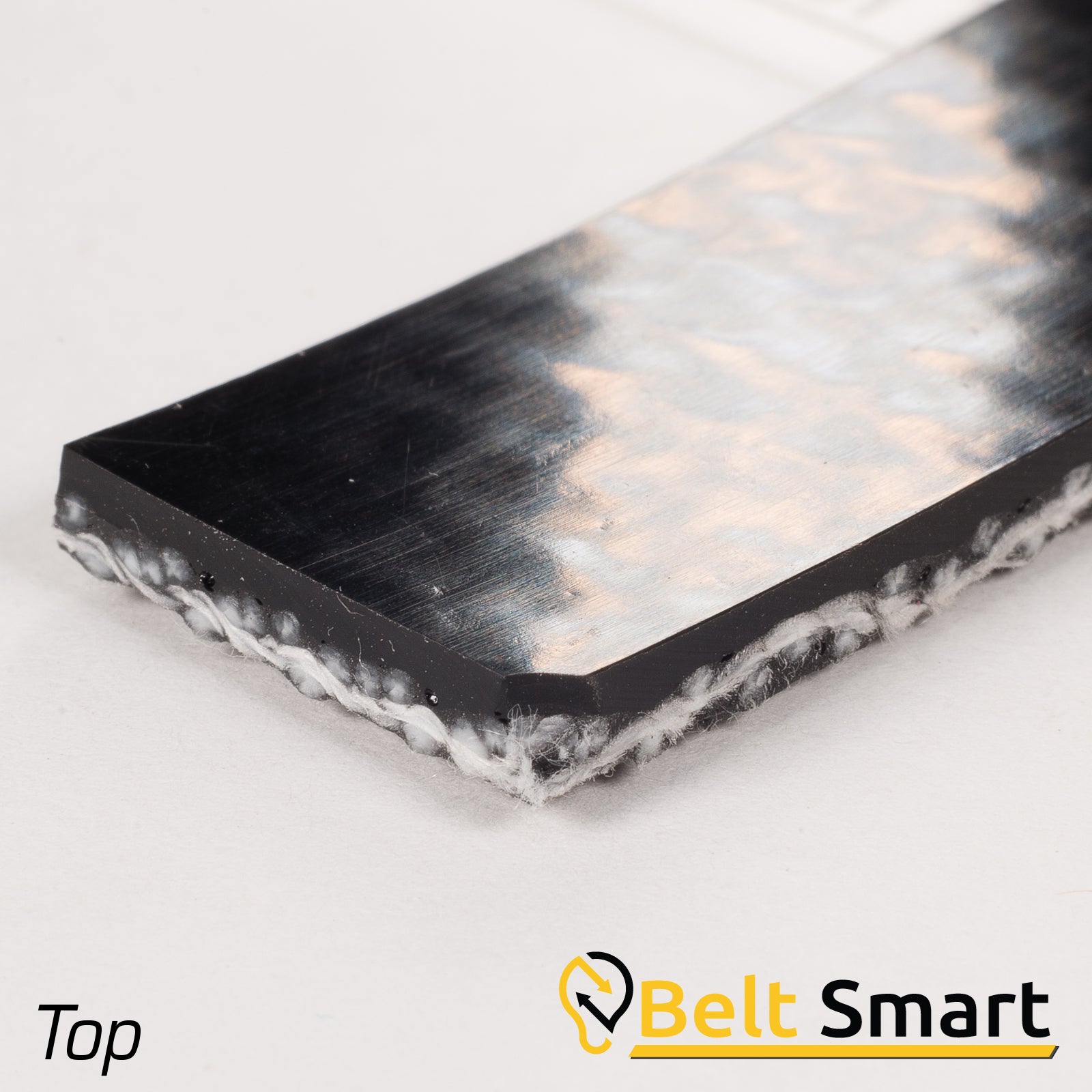

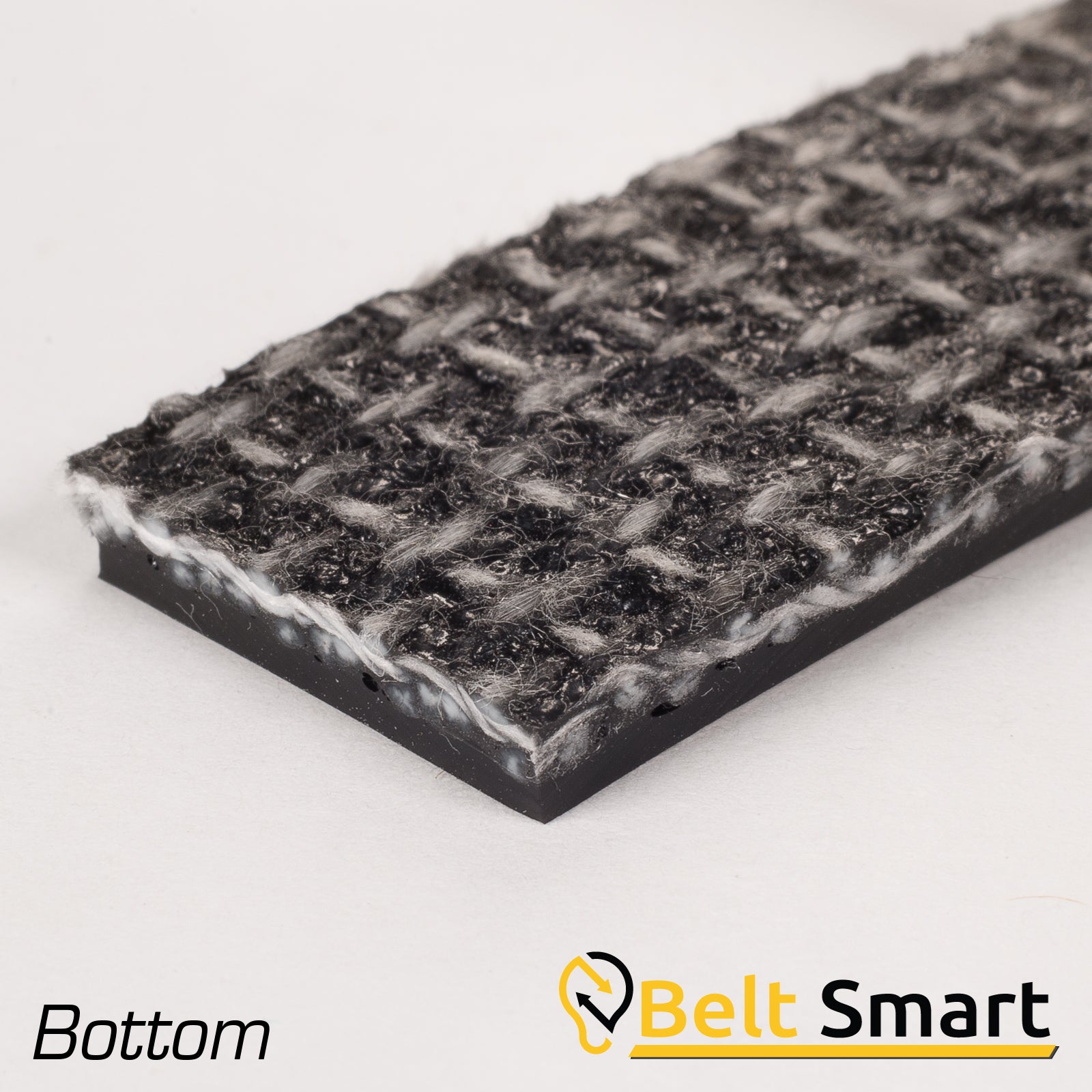

BS091 - #91 Beltservice PVC - 120 Black C x Brushed Conveyor Belt
BS091 - #91 Beltservice PVC - 120 Black C x Brushed Conveyor Belt
Beltservice

BS091 - #91 Beltservice PVC - 120 Black C x Brushed Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Package Handling
  • Slider Bed
  • Roller Bed
  • Live Roller
Features:
  • Has proven to be the longest wearing, best performing, most problem free package handling belt available today.
  • Economical, general purpose specifications ideal for a variety of slider bed, roller bed, and live roller applications.
  • Offer low stretch, high fastener holding ability and superior rip, tear, and gouge resistance.
PVC - 120 Black
C x C
Pt No.: 90		 PVC - 120 Black
C x Brushed
Pt No.: 91		 PVC - 120 Black
FS x Brushed FR
Pt No.: 92		 PVC - 150 Black
C x C
Pt No.: 93		 PVC - 150 Black
C x Brushed
Pt No.: 94		 PVC - 150 Black
FS x Brushed FR
Pt No.: 95
Thickness 5/32" 9/64" 7/64" 3/16" 5/32" 1/8"
Covers C x C C x FS FS x FS C x C C x FS FS x FS
Safe Work Load PIW
Conveyor		 120 lbs. 120 lbs. 120 lbs. 150 lbs. 150 lbs. 150 lbs.
Safe Work Load PIW
Elevator Allowable		 NR NR NR NR NR NR
Safe Work Load PIW
Elevator Preferred		 NR NR NR NR NR NR
Max Bucket Projection
Grain		 NR NR NR NR NR NR
Max Bucket Projection
Industrial		 NR NR NR NR NR NR
Min. Pulley Diameter
Conveyor / Elevator		 2-1/2" / NR 2-1/2" / NR 2" / NR 3" / NR 3" / NR 3" / NR
Temperature Range 0 deg. F / 180 deg. F
Approx. Weight
Lbs. Per Inch Width		 .091 lbs. .073 lbs. .050 lbs. .117 lbs. .087 lbs. .065 lbs.
Clipper Lace #2 #2 #1 #3 #2 #1
Alligator Lace #15 #15 #7 #20 #15 #15
Alligator Staple / Flexco SR #125 #125 #125 #125 #125 #125
