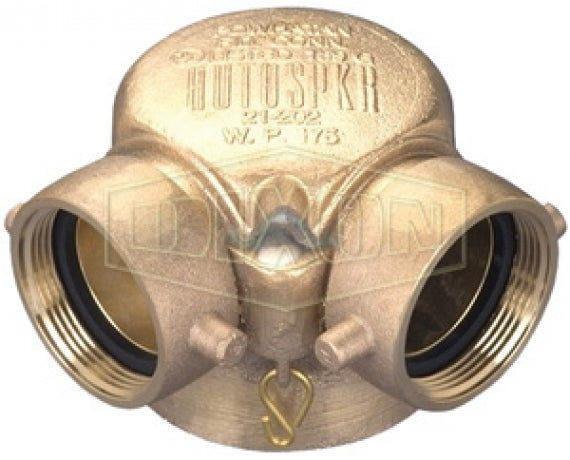

90SCS4025F Dixon Auto-Spkr Cast Brass 90 deg. Single Clapper Siamese Connection - Bottom Outlet - 4" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

90SCS4025F Dixon Auto-Spkr Cast Brass 90 deg. Single Clapper Siamese Connection - Bottom Outlet - 4" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

Sale price$631.20

Dixon Fire Fittings
Single Clapper Siamese Connections - Bottom Outlet - Cast Brass

Provides the required 500 GPM minimum to supplement the fire protection as an auxiliary inlet connection to the water supply. (250 GPM minimum per inlet.)
Buy More, Save More!
Quantity Price Each
5–14 $593.33
15–29 $536.52
30+ $473.40
Discounts applied in cart/checkout.

Product Data:

Shape:

Y

Ends Configuration:
  • 4in Female NPT
  • 2-1/2in Female NST
Material(s):
  • Brass
Features:
  • UL listed.
  • ULC listed.
  • Branding: Auto-Spkr.
  • The swing clapper design provides an unobstructed waterway.
  • Exposed Fire Department Connections (FDC) provide an economical method of satisfying local fire codes.
  • Single swing clapper with (2) pin lug swivel inlets.
  • Maximum operating pressure: 250 PSI at 70°F (21°C).
Size A B
4" x 2-1/2" x 2-1/2" (Dimensions match 90SCS4025F) 6-7/8" 9-7/8"
Part Number Inlet (2) Outlets Weight
(Lbs.)
90SCS4025F 4" Female NPT 2-1/2" Female NST (NH) 12.4000
90ISCS4025F* 4" Female NPT 2-1/2" Female NST (NH) 8.0000

* Parts are Imported, all others made in the USA
