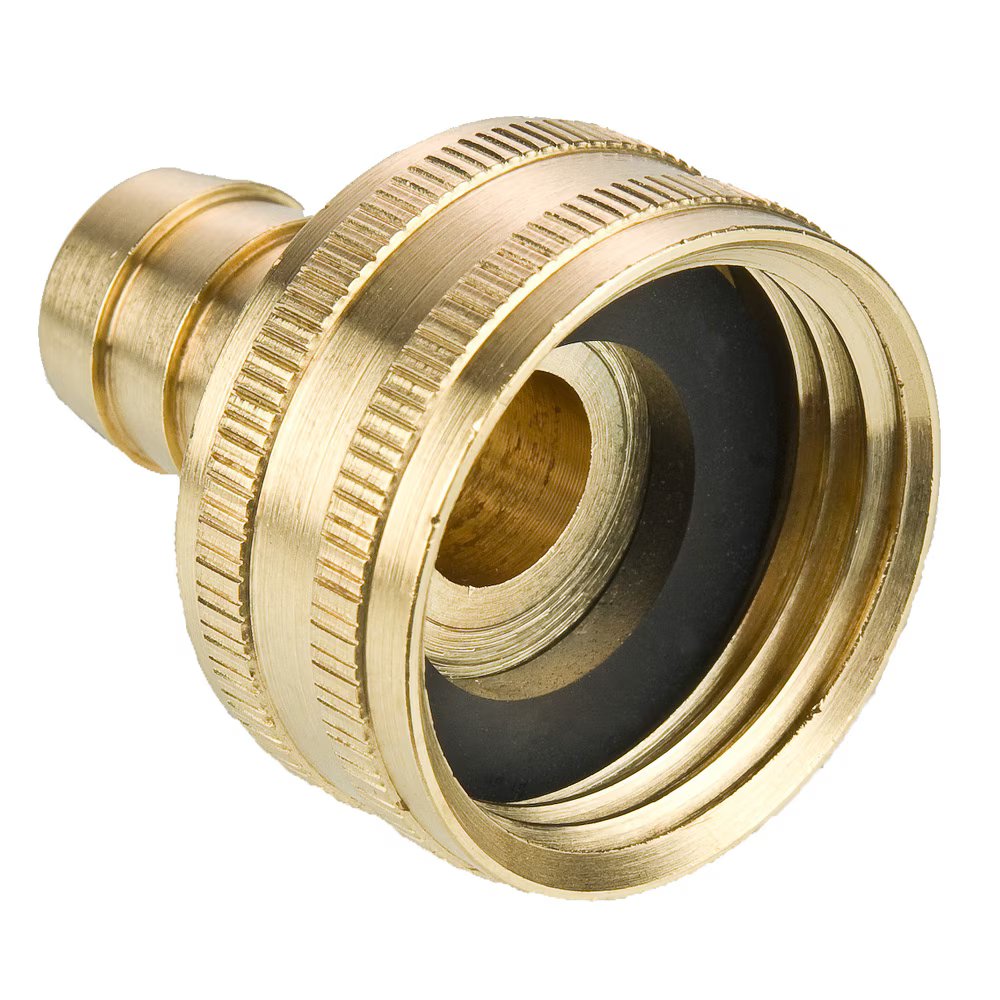

90GH-12-4 by Parker | Garden Hose Fittings | 3/4" Female Swivel Hose Thread x 1/4" Hose Barb | 1.21" Length | Straight | Brass | Pack of 10
by Parker Hannifin
Garden Hose Fittings:Swivel Connector Female Garden Hose to Hose Barb 90GH
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $112.54 |
| 20–59 | $101.76 |
| 60+ | $89.79 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Temperature Range: | +35° to +100° F at 75 PSI (+1.6° to +37.7° C at 5.1 bar) |
| Pressure Range: | Up to 150 PSI (10.3 bar) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Hose Thread | ID Hose Thread | L | M | Flow Diameter (D) |
| 90GH-12-3 | 3/4" | 3/16" | 1.29" | 1.15" | .125" |
| 90GH-12-4 | 3/4" | 1/4" | 1.21" | 1.15" | .187" |
| 90GH-12-6 | 3/4" | 3/8" | 1.21" | 1.15" | .281" |
| 90GH-12-8 | 3/4" | 1/2" | 1.21" | 1.15" | .375" |
| 90GH-12-10* | 3/4" | 5/8" | 1.93" | 1.19" | .500" |
| 90GH-12-12* | 3/4" | 3/4" | 1.93" | 1.19" | .625" |
*Denotes hex body
