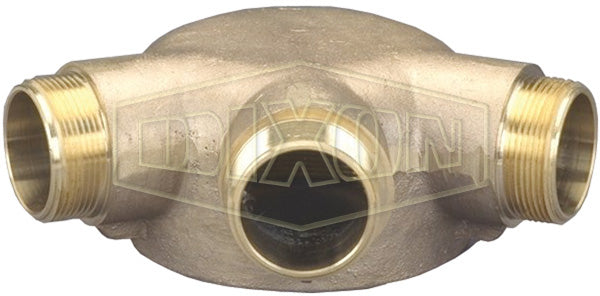

90FR3C6025F Dixon Cast Brass 90 deg. Three Way Male Outlet - Roof Connection - Bottom Outlet - 6" Female Pipe Inlet x Three 2-1/2" Male NST(NH) Outlets

90FR3C6025F Dixon Cast Brass 90 deg. Three Way Male Outlet - Roof Connection - Bottom Outlet - 6" Female Pipe Inlet x Three 2-1/2" Male NST(NH) Outlets

Sale price$1,193.91

Dixon Fire Fittings
Three Way Male Outlet - Roof Connection

Used to create roof connections, or fire pump test connections.
Buy More, Save More!
Quantity Price Each
4–7 $1,122.28
8–14 $1,074.52
15+ $955.13
Discounts applied in cart/checkout.

Product Data:

Shape:

Multi-Directional

Ends Configuration:
  • 6in Female NPT
  • 2-1/2in Male NST
  • 2-1/2in Male NST
  • 2-1/2in Male NST
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Provides 250 GPM minimum per outlet.
  • Material: Cast Brass.
Back Outlet
Part Number Inlet (Three) Outlets Dimensions Weight
(Lbs.)
A B C
FR3C4025 4" Female Pipe 2-1/2" Male NPT 12-3/4" 8-3/4" 5-1/4" 12.0000
FR3C6025 6" Female Pipe 2-1/2" Male NPT 15-3/8" 9-3/4" 7-5/8" 24.0000
FR3C6025F 6" Female Pipe 2-1/2" Male NST(NH) 15-3/8" 9-3/4" 7-5/8" 24.0000
Bottom Outlet
Part Number Inlet (Three) Outlets Dimensions Weight
(Lbs.)
A B C D
90FR3C4025 4" Female Pipe 2-1/2" Male NPT 7-3/4" 11-3/4" 4-7/16" 6-1/4" 23.2500
90FR3C4025F 4" Female Pipe 2-1/2" Male NST(NH) 7-3/4" 11-3/4" 4-7/16" 6-1/4" 23.2500
90FR3C6025 6" Female Pipe 2-1/2" Male NPT 7-3/4" 11-3/4" 4-7/16" 6-1/4" 16.2500
90FR3C6025F 6" Female Pipe 2-1/2" Male NST(NH) 7-3/4" 11-3/4" 4-7/16" 6-1/4" 16.2500

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
