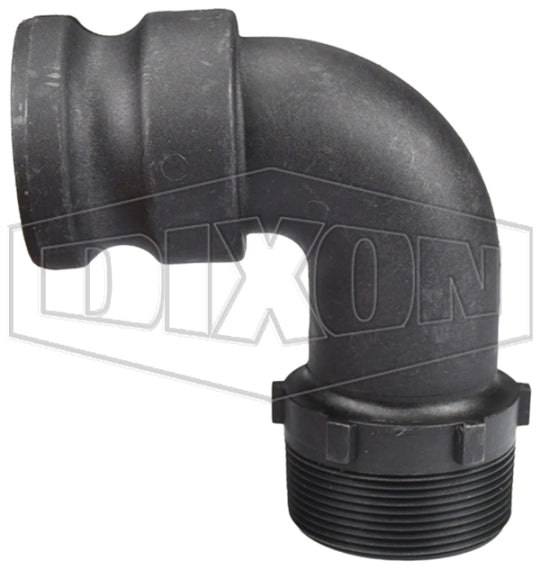

90PPF200 by Dixon Valve | Cam & Groove Adapter | 90° Elbow | Type F | 2" Adapter x 2" Male NPT | Polypropylene

90PPF200 by Dixon Valve | Cam & Groove Adapter | 90° Elbow | Type F | 2" Adapter x 2" Male NPT | Polypropylene

Sale price$16.10
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Construction:
  • Manufactured from glass-filled polypropylene.
Specifications:
  • Maximum operating pressure: 100 PSI (1-1/2" - 2"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
Glass-Filled PolypropylenePart Number Size Max. Operating Pressure
90PPF150 1-1/2" 100 PSI
90PPF200 2" 100 PSI

Additional Product Data:

MAWP:

100

Shape:

90 Degree

Cam & Groove Type:

Type F
