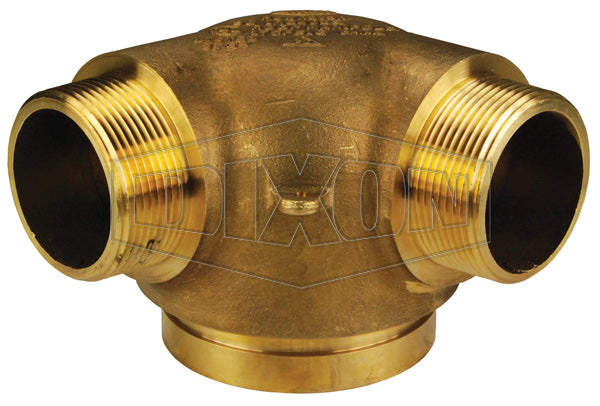

90FRC6025F Dixon Cast Brass 90 deg. Two Way Male Outlet - Roof Connection - Bottom Outlet - 6" Pipe Inlet x Two 2-1/2" Male NST(NH) Outlets

90FRC6025F Dixon Cast Brass 90 deg. Two Way Male Outlet - Roof Connection - Bottom Outlet - 6" Pipe Inlet x Two 2-1/2" Male NST(NH) Outlets

Sale price$617.70

Dixon Fire Fittings
Roof Connections - Bottom Outlet - Cast Brass

Used to create roof connections, fire pump test connections, wall hydrants or sidewalk (free standing) hydrants.
Buy More, Save More!
Quantity Price Each
5–14 $580.64
15–29 $525.05
30+ $463.28
Discounts applied in cart/checkout.

Product Data:

Shape:

Y

Ends Configuration:
  • 6in Female NPT
  • 2-1/2in Male NST
  • 2-1/2in Male NST
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Provides 250 GPM minimum per outlet.
  • UL listed.
  • Maximum operating pressure: 175 PSI at 70°F (21°C).
Size A B C D
4" x 2-1/2" x 2-1/2" 7-1/2" 6-3/4" 5-1/8" 4-1/2"
6" x 2-1/2" x 2-1/2" 9" 8-1/2" 7-1/2" 5"
Part Number Inlet (2) Outlets Weight
(Lbs.)
90IRC4025* 4" Pipe 2-1/2" Male NPT 6.0000
90FRC4025 4" Pipe 2-1/2" Male NPT 6.1800
90IRC4025F* 4" Pipe 2-1/2" Male NST(NH) 6.0000
90FRC4025F 4" Pipe 2-1/2" Male NST(NH) 10.3000
90FRC6025 6" Pipe 2-1/2" Male NPT 18.2400
90FRC6025F 6" Pipe 2-1/2" Male NST(NH) 18.2200
90IRC4025G* 4" Groove 2-1/2" Male NPT 7.0500
90IRC4025GF* 4" Groove 2-1/2" Male NST(NH) 7.0500

* Parts are Imported, all others made in the USA

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
