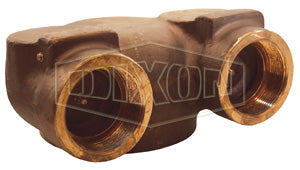

90CDMHCB60230 Dixon Brass Concealed Two Way Wall Hydrant Body - Bottom Outlet - 6" Female NPT Outlet x Two 3" Female NPT Inlets
Dixon

90CDMHCB60230 Dixon Brass Concealed Two Way Wall Hydrant Body - Bottom Outlet - 6" Female NPT Outlet x Two 3" Female NPT Inlets

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Provides 500 GPM minimums at 250 GPM per inlet (ref NFPA 14).
  • Drop clappers provide unobstructed waterway.
  • Flush design is desirable when appearance is a factor.
  • Double clapper.
  • 7-5/8" center-line.
  • Bodies require wall plate WP2 (24-385).
Back Outlet
Part Number Outlet (Two) Inlets Dimensions Weight
(Lbs.)
A B C
CDMHCB40225 4" Female NPT 2-1/2" Female NPT 11-1/8" 6" 7-5/8" 19.0000
CDMHCB40230 4" Female NPT 3" Female NPT 12-1/4" 8-1/8" 7-5/8" 22.0000
CDMHCB60225 6" Female NPT 2-1/2" Female NPT 11-1/8" 7-3/8" 7-5/8" 20.0000
CDMHCB60230 6" Female NPT 3" Female NPT 12-1/4" 8-1/4" 7-5/8" 39.0000
Bottom Outlet
Part Number Outlet (Two) Inlets Dimensions Weight
(Lbs.)
A B C
90CDMHCB60230 6" Female NPT 3" Female NPT 12" 9-1/2" 7-5/8" 41.0000
