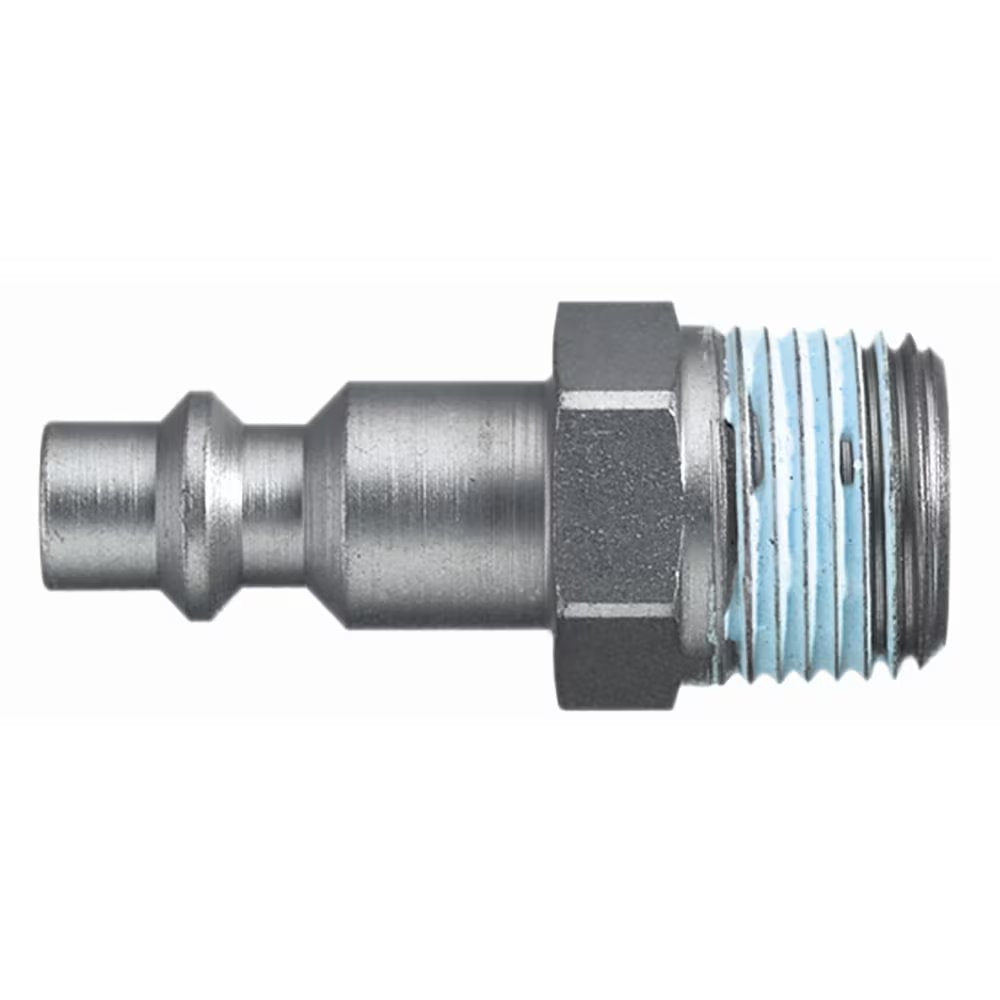

9087 23 17 by Parker | Legris Plug Quick Disconnect | 1/2" Male BSPP Thread | 17 mm Hex | 42 mm Length | Straight | Nickel-Plated Steel | Pack of 5

9087 23 17 by Parker | Legris Plug Quick Disconnect | 1/2" Male BSPP Thread | 17 mm Hex | 42 mm Length | Straight | Nickel-Plated Steel | Pack of 5

Sale price$51.56

by Parker Hannifin
Series 24 - Brass/Steel:9087 Plug without valve, Male Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $48.47
40–79 $43.83
80+ $38.67
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series 23
Shape:

Straight

Material(s):
  • Nickel-Plated Steel
Series 24 - Brass/Steel Series: Single Shut-Off 1/4" Industrial brass coupling according to ISO 6150 B and US MIL-SPEC 4109. Coupling system with single-hand operation, which stands out for its solid brass design and corresponding sleeve design. Hardened steel plug counters and effects of external forces.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass
  • Plug: Nickel-Plated Steel or Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 820 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 7.4 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1
9087 23 13 1/4" 14 mm 42 mm 12 mm
9087 23 17 3/8" 17 mm 42 mm 12 mm
