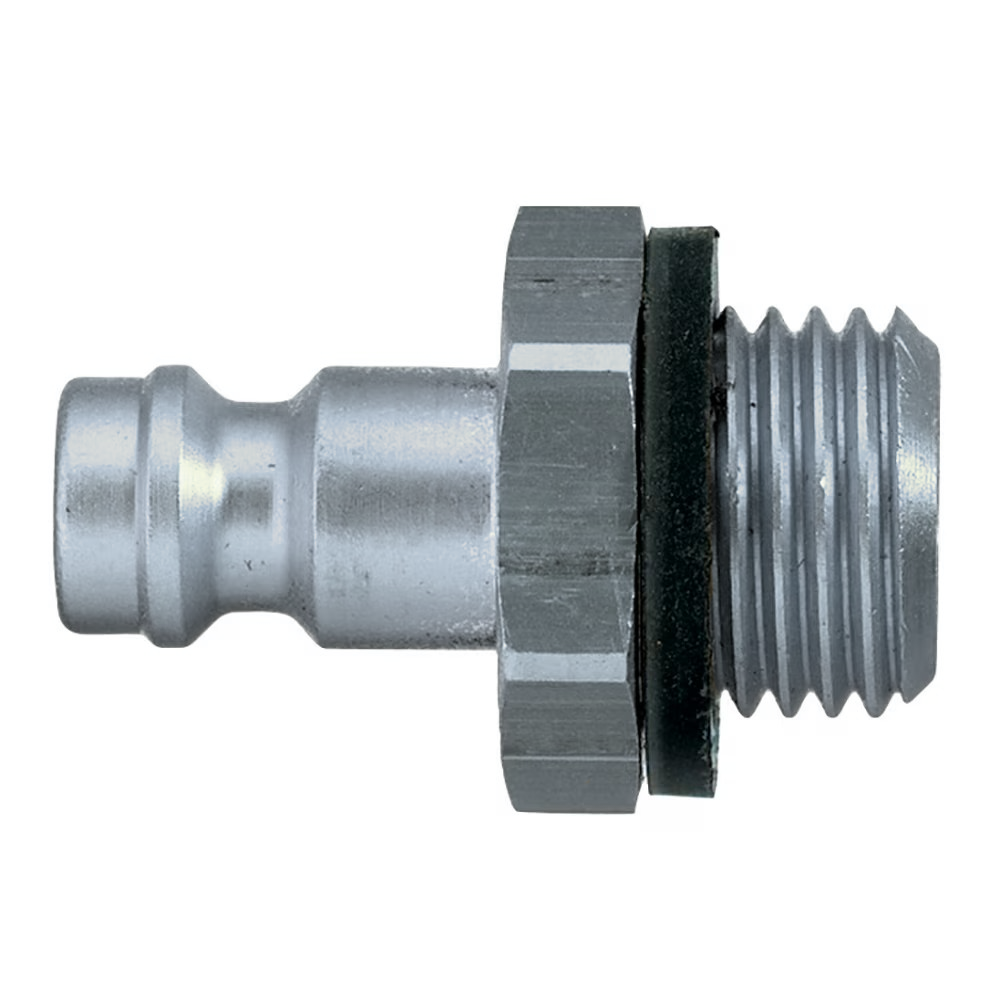

9087 21 13 by Parker | Legris Plug Quick Disconnect | 1/4" Male BSPP Thread | 17 mm Hex | 28 mm Length | Straight | Nickel-Plated Brass | Pack of 10

9087 21 13 by Parker | Legris Plug Quick Disconnect | 1/4" Male BSPP Thread | 17 mm Hex | 28 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$85.77

by Parker Hannifin
Series 21 - Brass/Steel:9087 Plug without valve, Male Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $80.62
30–59 $72.90
60+ $64.33
Discounts applied in cart/checkout.

Product Data:

Series:
  • 21 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Series 21 - Brass/Steel Series: Single Shut-Off Mini industrial coupling with the world's most popular profile in this nominal diameter. Above average flow performance for liquid and gaseous media. Coupling system with single-hands operation. Small dimensions and large bandwidth in materials and valve variants.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 550 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 7 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 Kg
9087 21 13 1/4" 17 mm 28 mm 9 mm .018 Kg
