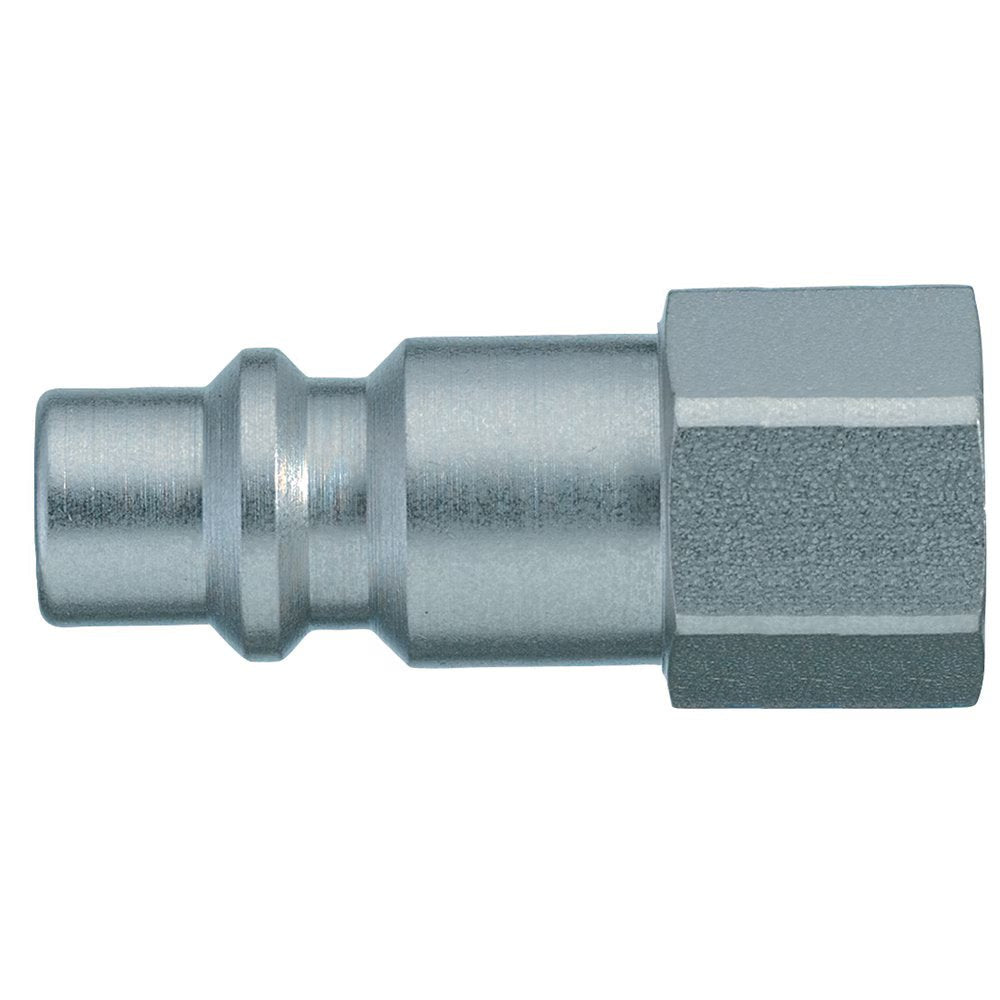

9086 30 13 by Parker | Legris Plug Quick Disconnect | 1/4" Male BSPP Thread | 17 mm Hex | 40 mm Length | Nickel-Plated Steel | Pack of 5

9086 30 13 by Parker | Legris Plug Quick Disconnect | 1/4" Male BSPP Thread | 17 mm Hex | 40 mm Length | Nickel-Plated Steel | Pack of 5

Sale price$70.62

by Parker Hannifin
Series 30 - Brass/Steel:9086 Plug without valve, Female Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $66.38
40–79 $60.03
80+ $52.97
Discounts applied in cart/checkout.

Product Data:

Series:
  • 30 Series
Shape:

No Orientation

Ends Configuration:
  • 1/4in Male BSPP
Series 30 - Brass/Steel Series: Single Shut-Off Steel coupling 3/8" according to ISO 6150 B and US MIL-SPEC 4109. Very robust design with steel valve bodies. The high insertion depth guarantees by an optimized plug guidance.
      Available on request:
  • in brass material with nickel plating
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass/Steel
  • Plug: Nickel Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 1.050 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 14 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1
9086 30 13 1/4" 17 mm 40 mm 10 mm
