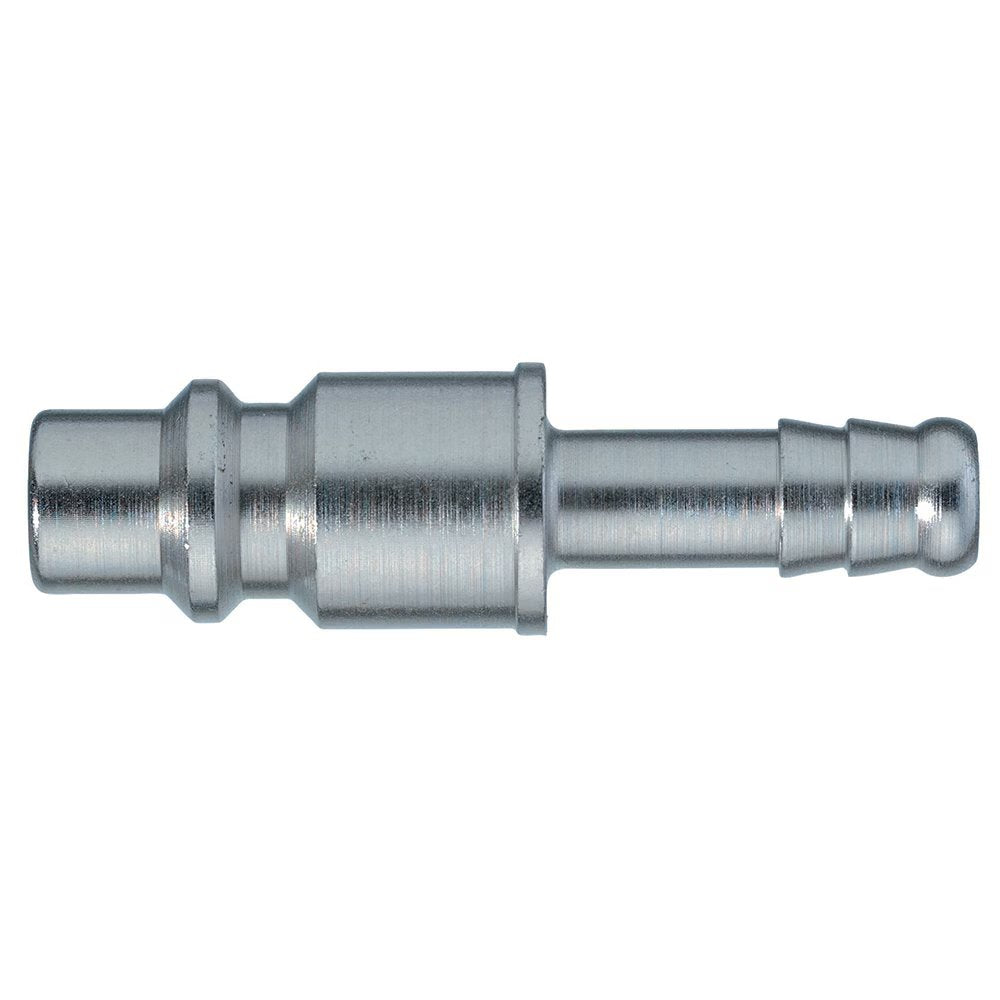

9085 30 62 by Parker | Legris Plug Quick Disconnect | 3/8" Hose Barb | 2.16" Length | Straight | Nickel-Plated Steel | Pack of 10

9085 30 62 by Parker | Legris Plug Quick Disconnect | 3/8" Hose Barb | 2.16" Length | Straight | Nickel-Plated Steel | Pack of 10

Sale price$72.10

by Parker Hannifin
Series 30 - Brass/Steel:9085 Plug without valve, Hose Barb

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $67.77
40–79 $61.29
80+ $54.08
Discounts applied in cart/checkout.

Product Data:

Series:
  • 30 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Steel
Series 30 - Brass/Steel Series: Single Shut-Off Steel coupling 3/8" according to ISO 6150 B and US MIL-SPEC 4109. Very robust design with steel valve bodies. The high insertion depth guarantees by an optimized plug guidance.
      Available on request:
  • in brass material with nickel plating
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass/Steel
  • Plug: Nickel Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 1.050 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 14 l/min. (Pressure dop 0.5 bar)
Part Number A L L1 D
9085 30 08 8 mm 55 mm 25 mm 16 mm
9085 30 60 5/16" - - -
9085 30 62 3/8" - - -

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
