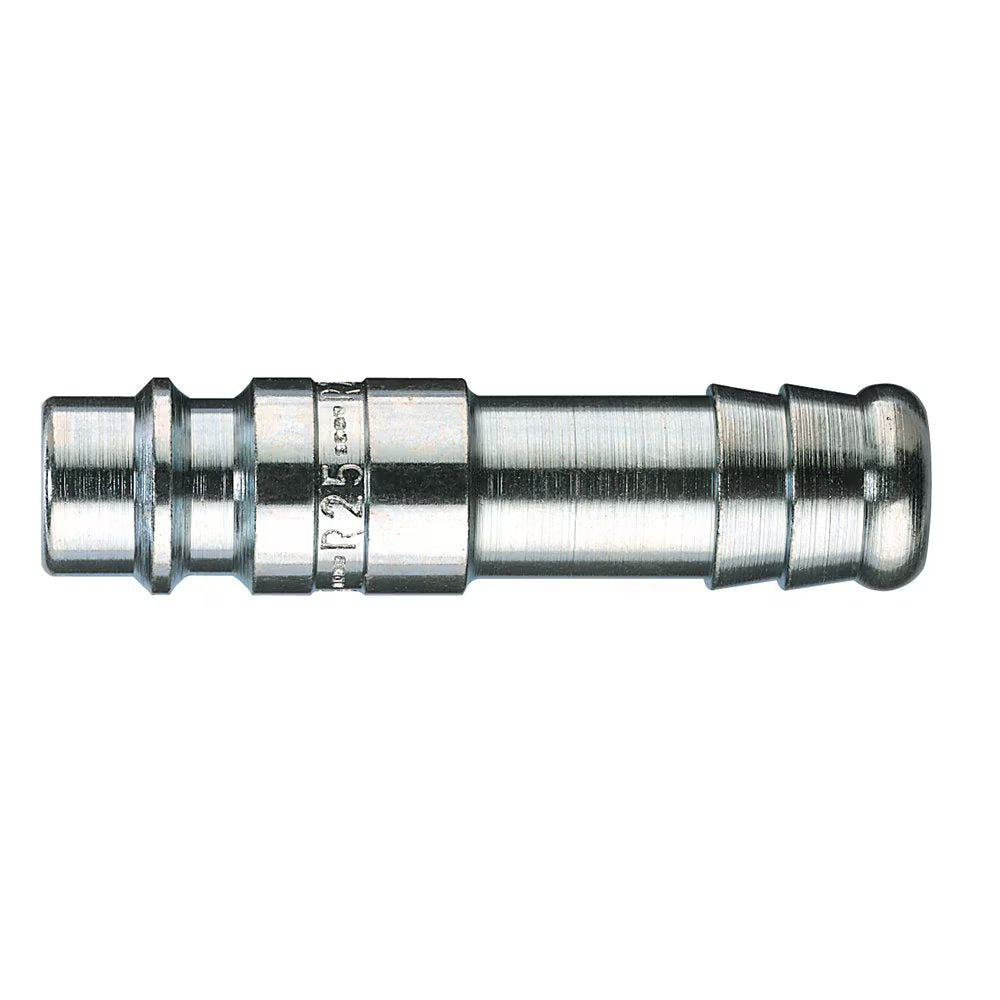

9085 25 13 by Parker | Legris Plug Quick Disconnect | 13 mm Hose Barb | 48 mm Length | Straight | Zinc-Plated Steel | Pack of 5

9085 25 13 by Parker | Legris Plug Quick Disconnect | 13 mm Hose Barb | 48 mm Length | Straight | Zinc-Plated Steel | Pack of 5

Sale price$29.24

by Parker Hannifin
Series 25 - Brass/Steel:9085 Plug without valve, Hose Barb

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $27.49
40–79 $24.85
80+ $21.93
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series 25
Shape:

Straight

Material(s):
  • Zinc-Plated Steel
Series 25 - Brass/Steel Series: Single Shut-Off Universal industrial coupling with European standard profile. Coupling system with single-hand operation. High Flow valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Nickel-Plated Brass/Steel
  • Plug: Zinc Plated Steel
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 1.800 l/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 28 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1
9085 25 10 10 mm 48 mm 25 mm 12 mm
9085 25 13 13 mm 48 mm 25 mm 15 mm
